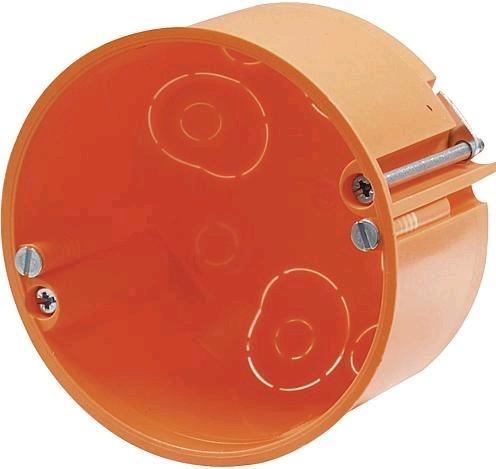

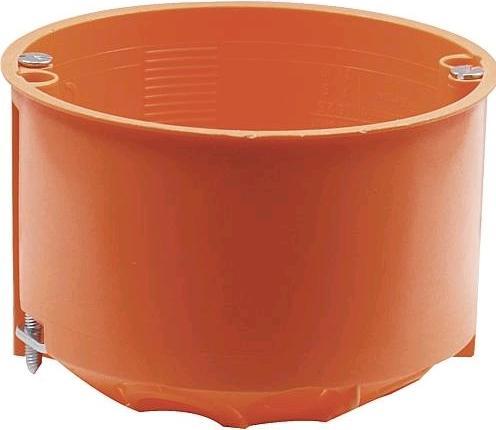

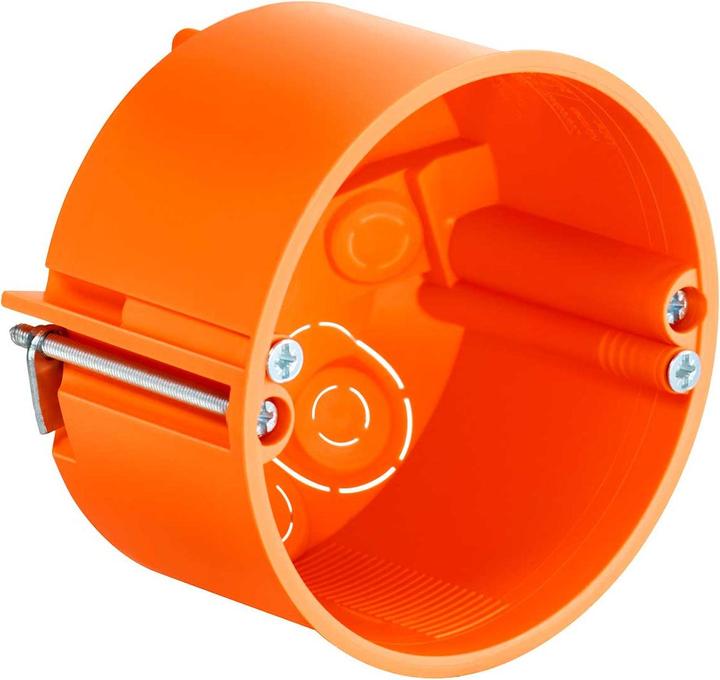

Kaiser Hollow Wall Box 9067-01

Manufacturer: Kaiser
Designation: Hollow wall box for Perilex inserts
Type: 9067-01
Mounting type: Hollow wall
Shape: round
Design: Device box
Version: Perilex
With rotating ring: no
Connectable: yes
Filling: without

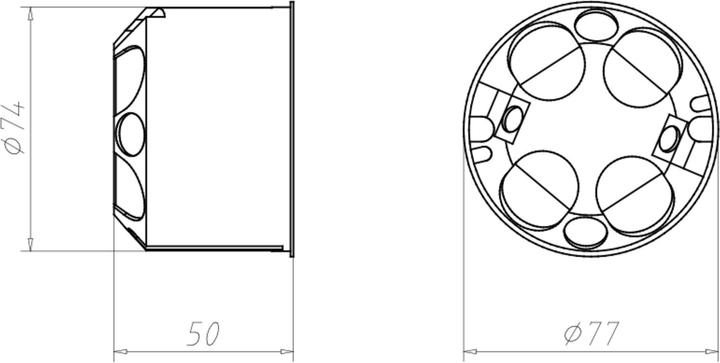

Diameter: 74 mm
Length: 16 mm
Depth: 50 mm
Internal depth: 48.5 mm
Device fastening: screws
With screws: yes
Housing passage through breakout opening: yes
Housing passage through sealing membrane: no
Housing passage through pipe fitting: no
Housing passage through stepped membrane: no
Roar locking: no
Optional roar locking: no
Rear entry: yes
Material: plastic
Halogen-free: no
Color: orange
Protection class (IP): IP3X
Cover version: without
Transparent cover: no
Seal-able: no
Function maintenance: without
With shielding: no
Air-tight: no
Light hook fastening: no
Fitting: tunnel fitting
Special application: other
With partition wall: no

Kaiser Hollow Wall Box 9067-01: further details
Device box Perilex®, depth 50 mm (9067-01). The new Kaiser hollow wall installation boxes feature proven tab fastening technology and improved product characteristics. A practical design and a targeted selection of cable and conduit entries allow for a variety of applications. Additional boxes for special applications, such as installation in thin-walled constructions or solid wood walls, complete the diverse range. The VDE certification documents the high quality standards.
Installation type: basic installation
Application area: For built-in devices
Depth: 50 mm
Milling hole Ø: 74 mm.
