Kaiser Hollow Wall Box 9075-01

Manufacturer: Kaiser
Description: Hollow wall box for CEE sockets 16A
Type: 9075-01
Mounting type: Hollow wall
Shape: round
Design: Device box
Version: CEE
With rotating ring: no
Connectable: yes
Filling: none

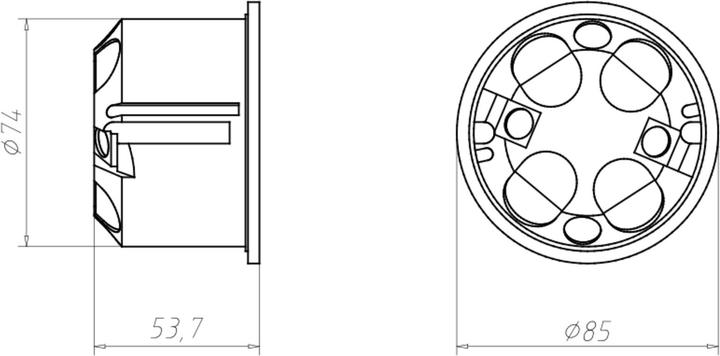

Diameter: 74 mm
Length: 20 mm
Depth: 50 mm
Internal depth: 48.5 mm
Device fastening: screws
With screws: no
Housing entry via knock-out: yes
Housing entry via sealing membrane: no
Housing entry via pipe socket: no
Housing entry via stepped membrane: no
Roar locking: no
Roar locking optional: no
Rear entry: yes
Material: Plastic
Halogen-free: no
Color: orange
Protection class (IP): IP3X
Cover design: none
Transparent cover: no
Seal-able: no
Function preservation: none
With shielding: no
Air-tight: no
Lamp hook fastening: no
Socket: Tunnel socket
Special application: other
With partition wall: no

Kaiser Hollow Wall Box 9075-01: additional details

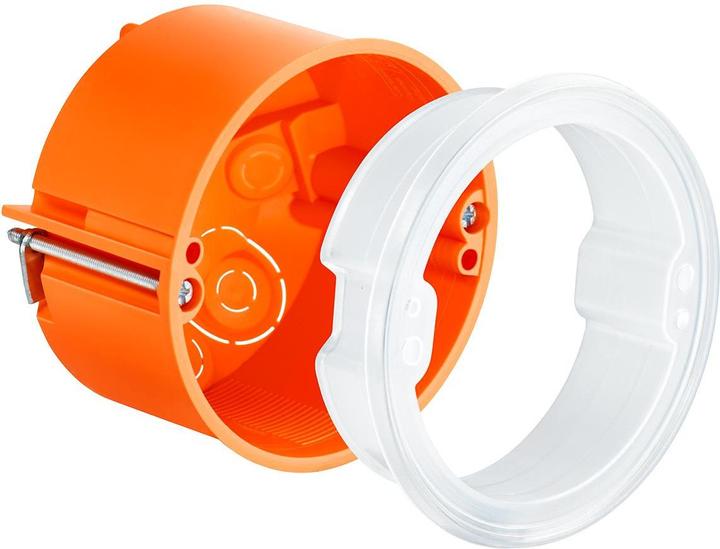

CEE device box with sealing ring, depth 50 mm (9075-01). The new Kaiser hollow wall installation boxes feature proven tab fastening technology and improved product characteristics. A practical design and a targeted selection of cable and conduit entries allow for a wide range of applications. Additional boxes for special applications, such as installation in thin-walled constructions or solid wood walls, complete the diverse range. The VDE certification documents the high quality standards.

Installation type: Basic installation
Application area: For built-in devices
Depth: 50 mm
Cut-out Ø: 74 mm
EAN: 4013456213104.
