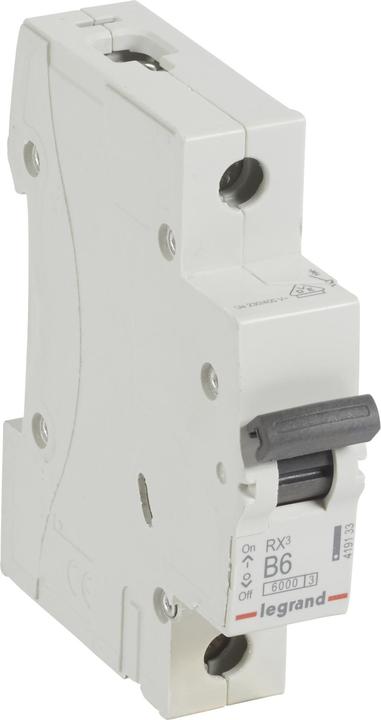

RX3 Circuit Breaker B-Characteristic, 6A, Single Pole, 6kA, 230/400VAC, 1TE Benefit: Our thermal-magnetic circuit breaker is designed to protect wiring systems against overload and short circuits and can also be used for controlling and isolating the system. Switching Capacity: According to the IEC 6898-1 standard for residential installations, the switching capacity is rated at 6 Amperes. The tripping threshold in the event of a short circuit is between 18A and 3A (B-characteristic between 3 In and 5 In). Installation: The circuit breaker is mounted on a DIN standard rail and can be connected either with a copper cable via terminal strips (top or bottom) or fork terminals (bottom). Protection Class: The circuit breaker is protected against solid objects larger than 12.5 mm ("finger-safe"). This corresponds to protection class IP2. The maximum degree of limitation of the allowed energy is secured by energy limitation class 3. Technical Details: B-Characteristic, 12 pieces, 6A, Single Pole, 6A switching capacity, 230/400VAC, 1TE, thermal-magnetic circuit breaker, IP2, DIN standard rail.
