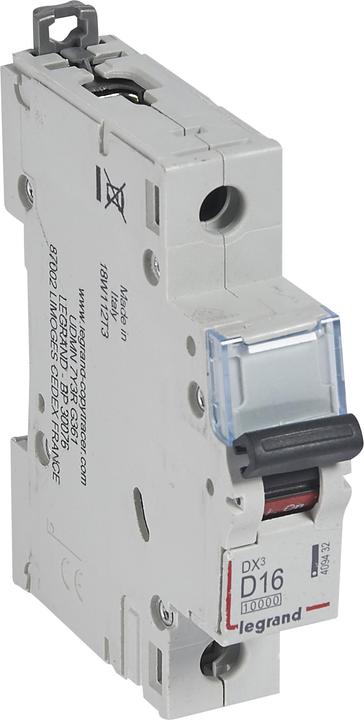

Legrand miniature circuit-breaker 409432 Manufacturer :Legrand Designation :Miniature circuit-breaker D-charact.., 16A Type :409432 Mounting depth :44 mm Tripping characteristic :D Number of poles (total) :1 Number of fused poles :1 Rated current :16 A Rated voltage :230 V Rated insulation voltage Ui :500 V Rated impulse withstand voltage Uimp :4 kV Rated breaking capacity Icn to EN 60898 at 230 V :10 kA Voltage type :AC Rated breaking capacity Icu to IEC 60947-2 at 230 V :16 kA Frequency :50..60 Hz Flush mounting :yes Neutral conductor to be connected :no Degree of pollution :2 Additional devices possible :yes Width in pitch units :1 Protection class (IP) :IP20 Ambient temperature during operation :-25..70 °C Connectable conductor cross-section stranded :1.5...25 mm² Connectable conductor cross-section solid :1.5...35 mm² Explosion-proof :no Legrand miniature circuit-breaker 409432: further details Legrand miniature circuit-breaker DX3 to EN 60947-2, 1-pole, D-characteristic, rated current In 16 A, rated breaking capacity 10 kA to EN 60898-1, rated voltage Un 230/400 VAC, rated frequency 50/60 Hz, mounting on top-hat rail EN 60715 by means of two latching quick-release fasteners, clear information on the front of each device, clear switch-position information on the front of each device.clear information on the front of each device, clear switch position indication red/green, with labelling window, with plug-in protection for safe insertion of the conductor into the lift terminal, mounting of auxiliary devices possible. Miniature circuit breakers with D-characteristic are intended for line protection in power circuits with very high inrush currents (e.g. welding transformers). , EAN: 3414970434012.
