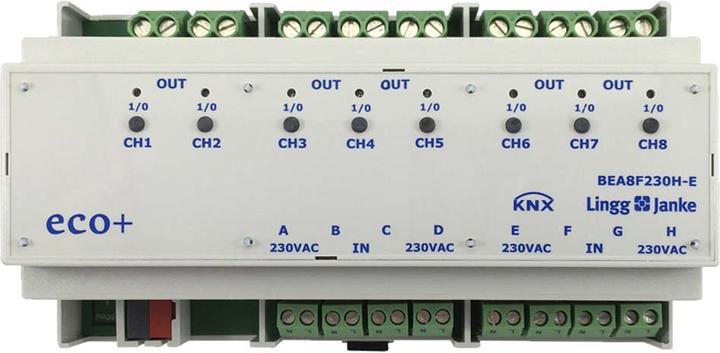

Lingg & Janke Binary input/output eco+ 8f 79242 230V AC/DC 16A C-load BEA8F230-E 9TE

Switch actuator
Price in EUR including VAT
Ratings
BrandMore from Lingg & Janke
Delivered between Thu, 9.10. and Sat, 11.10.
Only 2 pieces in stock at supplier
free shipping

Max. Switching capacity2

Product details

The eco+ binary input/output 8f from Lingg & Janke is a highly advanced heating actuator designed for the control of heating systems. With eight signal inputs and an operating voltage of 230 V AC/DC, this switching actuator enables precise and reliable control of electrical loads up to 16 amperes. Programming is done via the ETS software, allowing for user-friendly customization and integration into existing systems. The actuator is suitable for mounting on a DIN rail and offers an IP20 protection rating, making it ideal for use in dry indoor environments. Made in Germany, the eco+ binary input/output combines quality and functionality in a compact design.

  • Eight signal inputs for flexible control options
  • Programming via ETS software for easy adjustments
  • Suitable for mounting on DIN rails
  • IP20 protection rating for use in dry indoor environments.

Key specifications

Actuator type
Switch actuator
Items per sales unit
1 x
Smart Home Protocol
KNX
Mounting type
Top-hat rail
Item number
23702210

General information

Manufacturer
Lingg & Janke
Category
Actuator
Manufacturer no.
79242/79242SEC
Release date
11.1.2023

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
3680 W
rated current
16 A
Operating voltage
230 V
Number of switching outputs
8 x
Mounting type
Top-hat rail
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
Smart Home Protocol
KNX
Requires Smart Home Hub
No

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
180 mm
Width
9 mm
Height
70 mm
