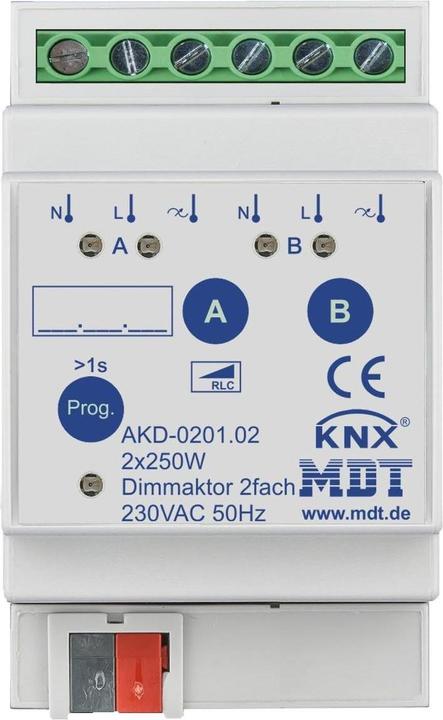

MDT technologies dimming actuator 2-fold 3TE REG 250W, 230VAC, type AKD-0201.02.

This dimming actuator features a bus system KNX and is designed for use with dimmable LED lamps (from 2W), as well as HV and LV halogen lamps with transformer/EVG. It allows for operation in phase angle or phase section, with current active power measurement.

Key features include:

• Integrated diagnostic function with plain text messages
• Overload, short-circuit, and temperature protection with alarm messages
• Time functions such as on/off delay and staircase lighting function
• Automatic time-dependent dimming
• Soft start and adjustable global and individual dimming speeds
• Day/night function
• Pushbutton for manual operation
• LED display for each channel
• Parallel operation of two channels with a total power of 500W

The rated power is 2 x 250W or 1 x 500W, with individual L/N connections for each channel (different phases possible: L1, L2, L3).

Protection class is IP20.
