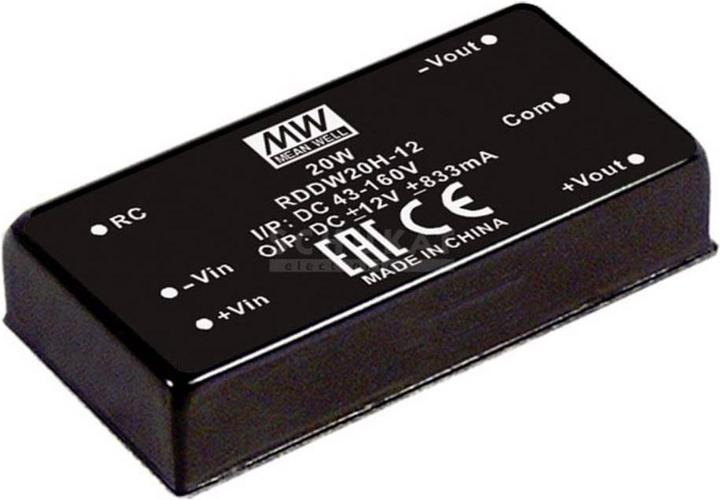

MeanWell DC/DC converter modules RDDW20 series DIP/DIL x1 Case Dual Output 1 Railway

Price in EUR including VAT
Ratings
BrandMore from MeanWell
Delivered between Thu, 13.11. and Sat, 15.11.
Only 2 pieces in stock at supplier
free shipping

input voltage3

Output voltage2

Product details

The Mean Well RDDW20H-15 is a powerful DC/DC converter specifically designed for applications in the railway sector. With a maximum output power of 20 watts and two outputs, this module provides reliable voltage conversion for various electronic systems. The converter is housed in a compact DIP/DIL 2x1 inch case, allowing for direct mounting on circuit boards. The input voltage range of 43 to 160 V/DC and the 4:1 voltage ratio make it versatile for different uses. Additionally, the RDDW20H-15 is designed for an operating temperature range of -40 °C to +85 °C, making it suitable for demanding environments. Its high efficiency of up to 89% ensures low energy loss and improved performance. The converter offers comprehensive protection against short circuits, overloads, overvoltage, and undervoltage, enhancing reliability and safety in critical applications.

  • Input voltage range of 43 to 160 V/DC
  • Input/output isolation of 3000 V/DC
  • Protection features against short circuits, overloads, and overvoltage
  • Operating temperature range of -40 °C to +85 °C
  • High efficiency of up to 89%.

Key specifications

input voltage
160 V
Output voltage
15 V
Power output
20 W
Voltage transformer type
Vehicle voltage transformer
Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Item number
12971131

General information

Manufacturer
MeanWell
Category
Power inverters
Manufacturer no.
RDDW20H-15
Release date
22.3.2020

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer
input voltage
160 V
Output voltage
15 V
Power output
20 W
Electric current output
0.67 A

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Weight
35 g
