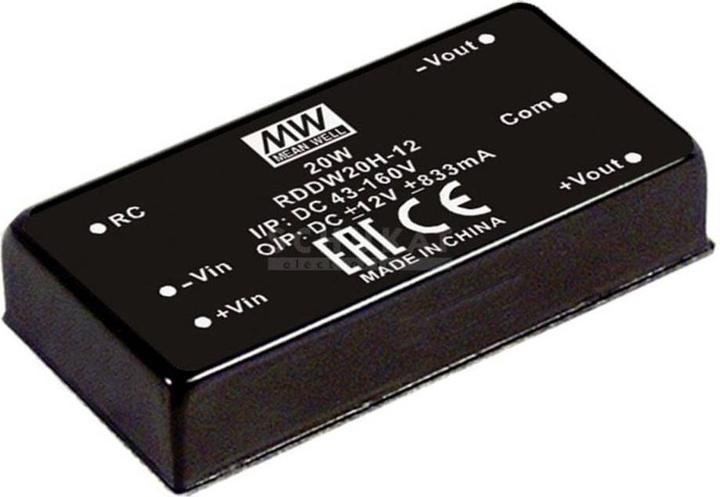

MeanWell DC/DC converter modules RDDW20 series DIP/DIL x1 Case Dual Output 1 Railway

Price in EUR including VAT
Ratings
BrandMore from MeanWell
Delivered between Thu, 13.11. and Sat, 15.11.
Only 2 pieces in stock at supplier
free shipping

input voltage3

Output voltage3

Product details

The Mean Well RDDW20G-15 is a powerful DC/DC converter specifically designed for applications in the railway sector. With a compact design in a DIP/DIL 2x1 inch housing, this module is ideal for direct mounting on circuit boards. It offers a dual output power of up to 20 watts and can handle input voltages ranging from 18 to 75 volts. The converter is suitable for a variety of applications where reliable voltage conversion is required. Outstanding features include a high efficiency of up to 90% and comprehensive protection functions that cover short circuits, overload, overvoltage, and undervoltage at the input. With an isolation voltage of 1500 V DC, the RDDW20G-15 ensures safe and stable performance under demanding conditions.

  • Input voltage range of 18 to 75 V
  • Dual output voltage of +15 V/DC and -15 V/DC
  • High efficiency of up to 90%
  • Comprehensive protection against short circuits, overload, and overvoltage
  • Operating temperature range of -40 °C to +85 °C.

Key specifications

input voltage
75 V
Output voltage
15 V
Power output
20 W
Voltage transformer type
Vehicle voltage transformer
Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Item number
12971182

General information

Manufacturer
MeanWell
Category
Power inverters
Manufacturer no.
RDDW20G-15
Release date
22.3.2020

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer
input voltage
75 V
Output voltage
15 V
Power output
20 W
Electric current output
0.67 A

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Weight
35 g
