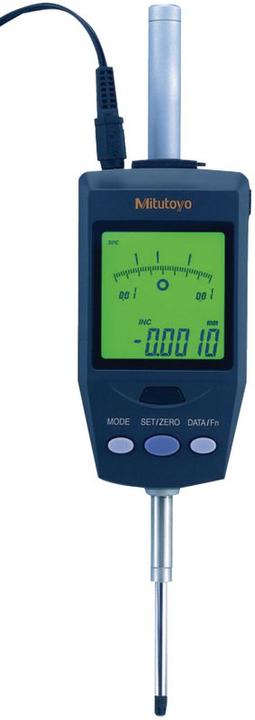

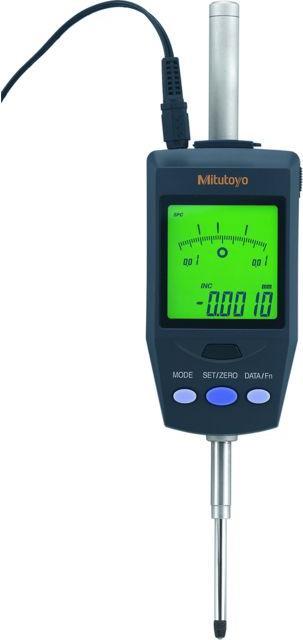

Mitutoyo dial gauge digital ID-H, 30 / 0.0005 / 1.5 µm / 2.0 N

Series 543 - Multifunctional dial indicator with high accuracy and small resolution. Optimal measuring precision, even at high process speeds (1000 mm/sec). Effortless reading with large display digits and analogue display.

Features:

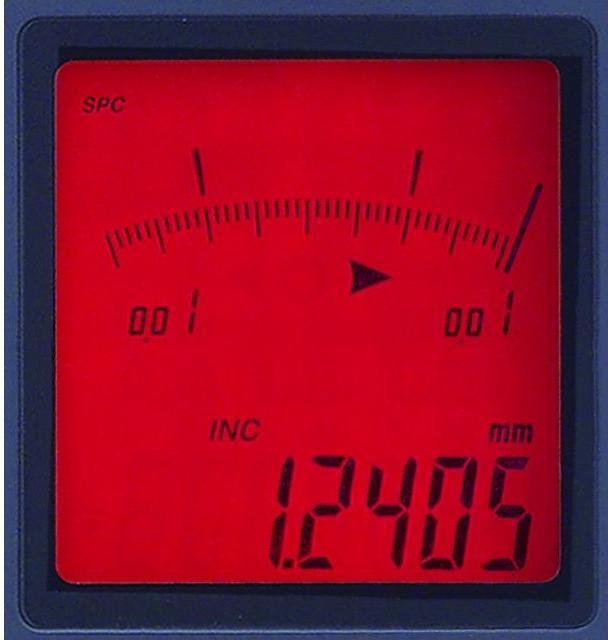

• Combined analog/digital display
• ABSOLUTE system
• ZERO (setting display to zero)
• Visual tolerance judgment GO/±NO
• MAX / MIN / DELTA function
• PRESET (fixed value setting)
• Keylock
• Counting sense reversal
• Can be controlled externally by remote (optional)
• Data input via PRESETTER (optional)
• Data output Digimatic + RS-232

Package contents:
Delivered in transport packaging including power adapter (battery operation not possible) and factory certificate.
