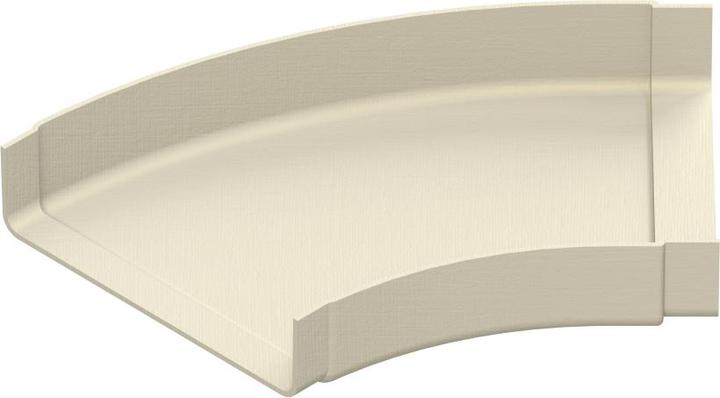

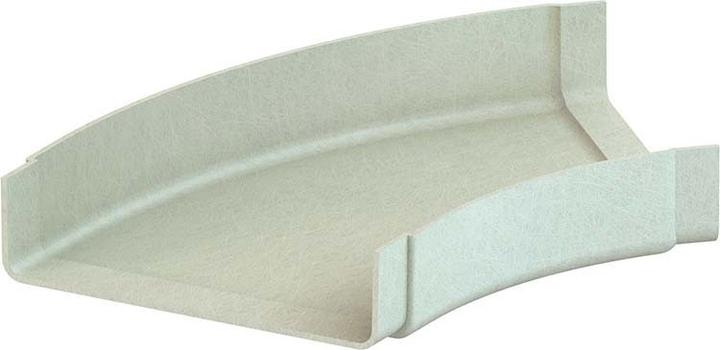

Niedax GRP bend 45deg KKC 80.200

Manufacturer: Niedax
Designation: GRP bend 45deg
Type: KKC 80.200
Change of direction: horizontal
Angle: 45°
Type: bend rigid
Bend design: smooth bend
With top: no
Inside radius: 200 mm
Cable tray height: 80 mm
Cable tray width: 200 mm
Material thickness: 3 mm
Side perforation: no
Mounting hole in base: no
NATO hole pattern: no
Design: integrated connector
Wide span design: no
Suitable for functional integrity: no
Material: plastic
Stainless steel, pickled: no
Material grade: GRP
Surface protection: other
Colour: grey RAL number: 7032

Niedax GRP bend 45deg KKC 80.200 is a pressed bend with unperforated side rails and a moulded connector, designed for the production of 45° horizontally angled cable trays. Please order fixing accessories separately. The product is halogen-free. During installation, ensure that the bend is supported with brackets at each cable tray access point. For proper installation, the connectors must be screwed to each cable tray access with 2 FKM 6X16 E4 (please order separately).

Article also available in AC (resin mixture with acrylic resin).

Use for:

• GRP cable tray KK 80
• GRP cable tray KKL 80

Dimensions (approx.):
Height x Width: 80 x 200 mm
Inner bar radius R: 200 mm
Material: UP-GF (glass fibre reinforced polyester)
Colour: pebble grey RAL: 7032 (similar)
EAN: 4013339953462.
