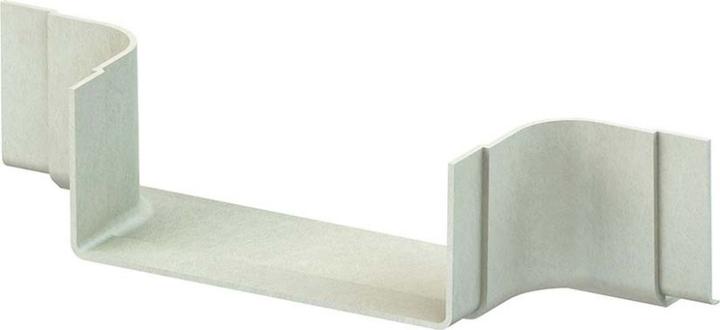

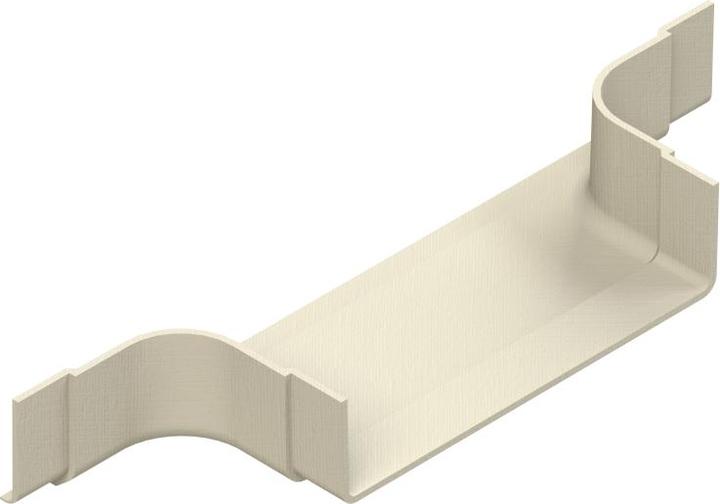

Niedax GFK Mounting T-Piece KKSS 80.200

Manufacturer: Niedax
Description: GFK Mounting T-Piece Small
Type: KKSS 80.200
Cable Tray Height: 80 mm
Cable Tray Outlet Width: 200 mm
Inner Radius: 25 mm
NATO Hole Pattern: no
Design: integrated connector
Wide Span Design: no
Suitable for Function Maintenance: no
Material: Plastic
Stainless Steel, Pickled: no
Material Quality: GFK
Surface Protection: other
Color: gray
RAL Number: 7032

Niedax GFK Mounting T-Piece KKSS 80.200: additional details
GFK Mounting T-Piece, small, pressed, with unpunched side beams and molded connector, for creating horizontal 90° T-outlets and intersections of varying and equal widths, depending on the main direction. Proportional fastening accessories must be ordered separately, halogen-free.

During installation, it is important to ensure that the mounting T-Piece is supported with brackets at each cable tray access. To ensure proper installation, the connectors must be bolted at each cable tray access with 4 FKM 6X16 E4 screws (please order separately).

Item also available in AC (resin mixture with acrylic resin).
Usage for: GFK Cable Tray KK 80... GFK Cable Tray KKL 80...
Dimensions (approx. measurements) H x W: 80 x 200 mm
Cutout of the cable trays: 100 mm + B
Inner Beam Radius R: 25 mm
Material: UP-GF (glass fiber reinforced polyester)
Color Shade: pebble gray
RAL: 7032 (similar).
