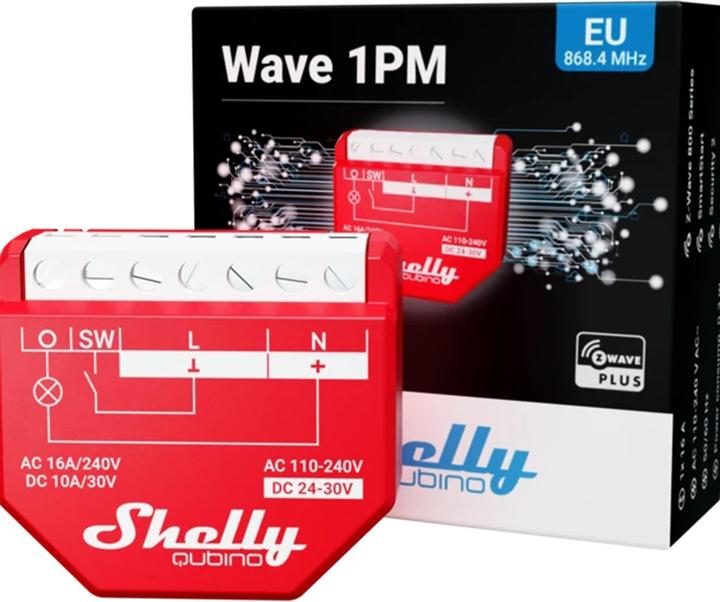

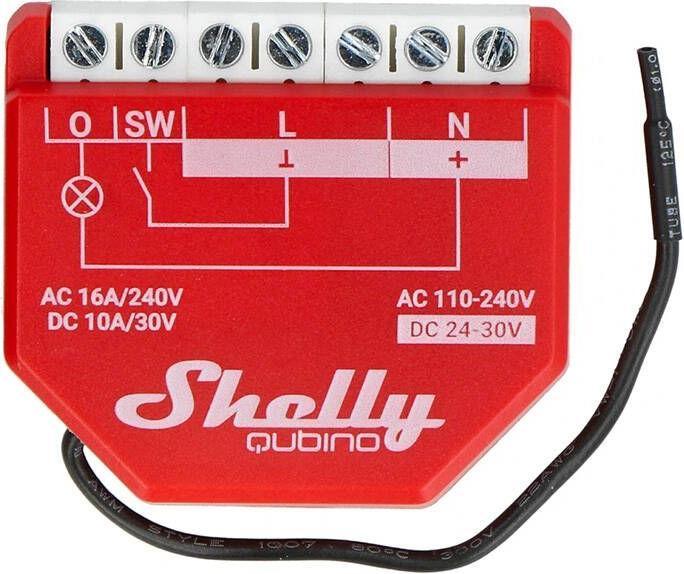

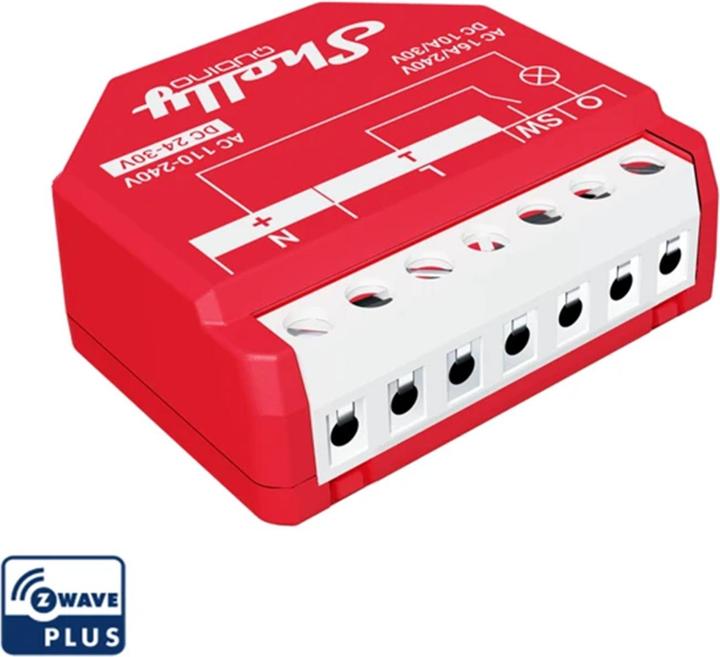

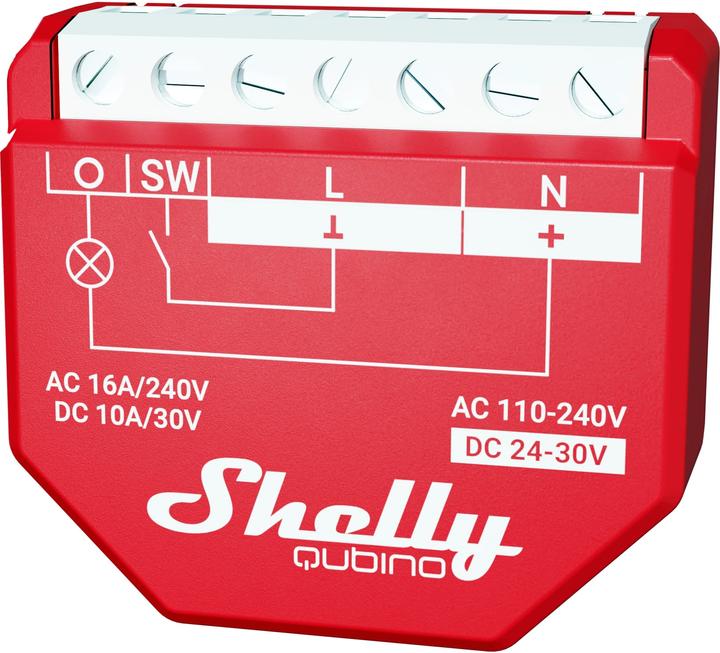

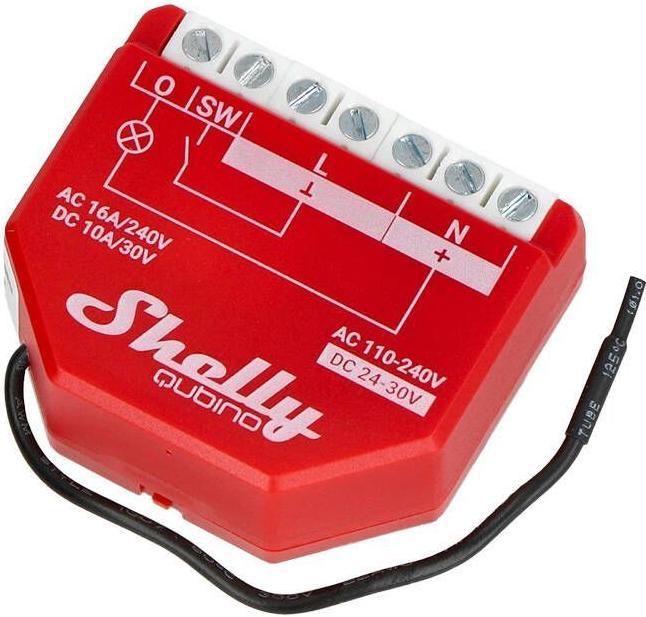

The Shelly Qubino Wave 1PM Relay 16A 1 Channel transforms a standard wall switch or outlet into a smart outlet. It can be used to automate a wide range of electrical devices, such as lights, ceiling fans, water heaters, or pool pumps.

It is ideal for power monitoring and remote control (on/off) of an electrical device or a group of devices, which can be managed via smartphone or tablet according to schedules or scenes. This module is compatible with switches or push buttons.

A gateway (Smart Hub) is required for device configuration.

Features:

• Z-Wave Relay 1 Channel 16A total
• Measures the power consumption of the connected device

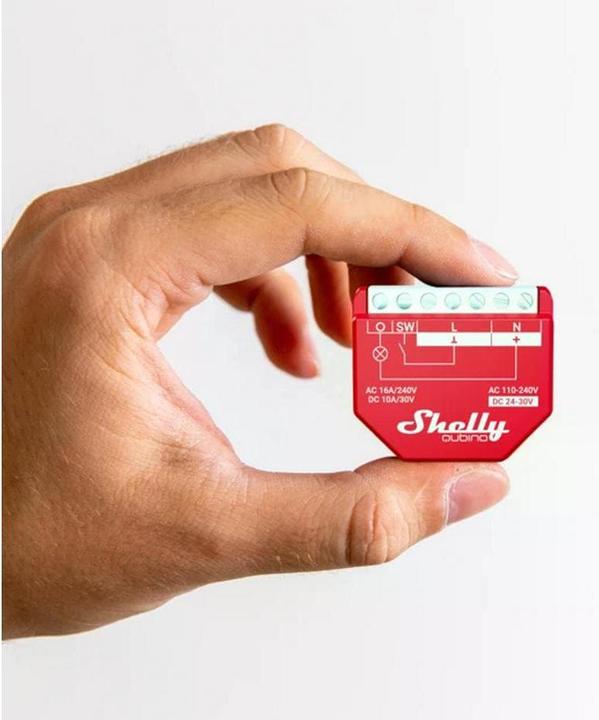

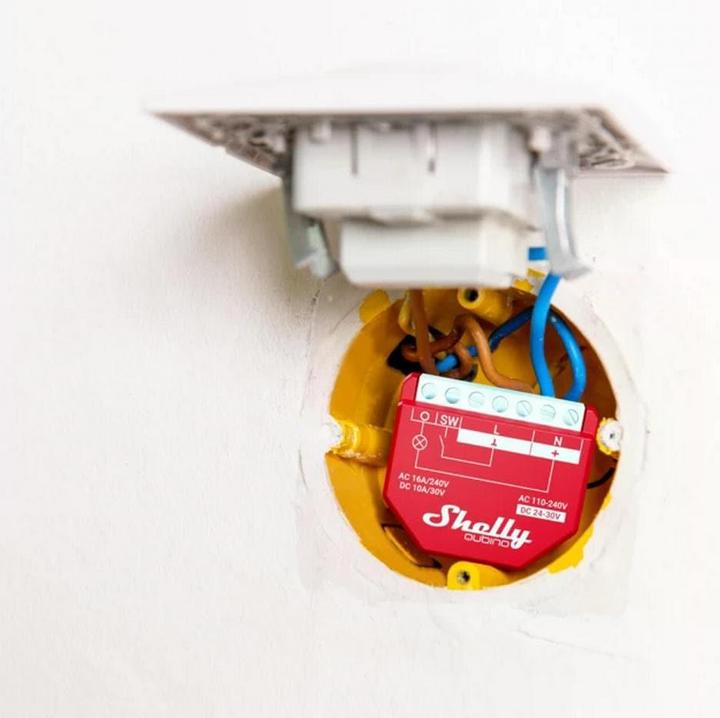

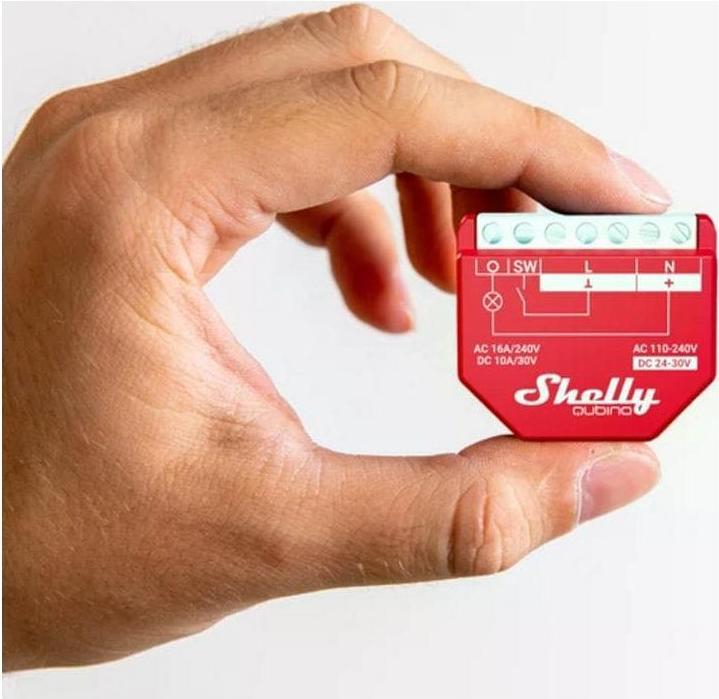

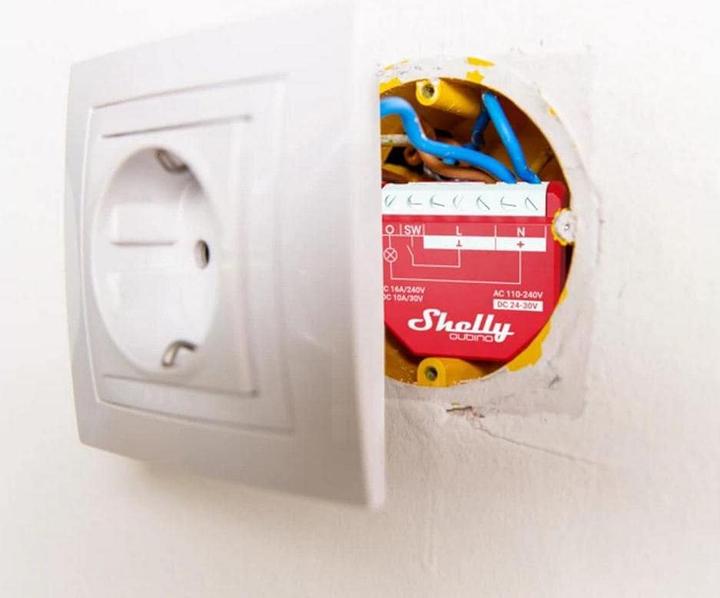

• Compact size ensures easy installation behind any wall switch or wall outlet
• Extended radio range: Up to 40 m indoors
• SmartStart for automatic setup
• OTA firmware update for over-the-air updates
• S2 Security authentication
• Extremely low energy consumption: Less than 0.3 W

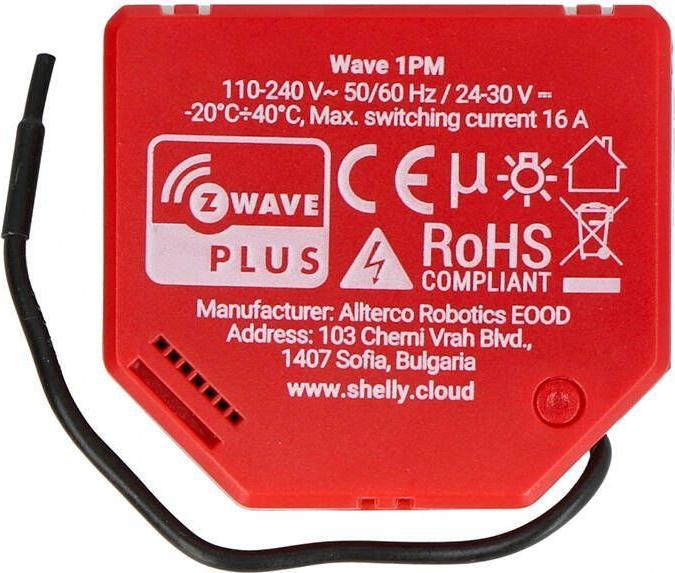

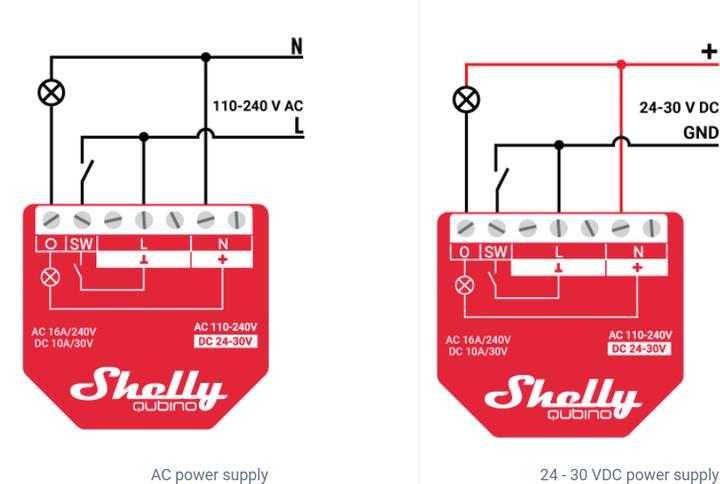

• Power supply: 110-240 V AC / 24-30 V DC
• Max. switching current AC: 16 A
• Max. switching voltage DC: 30 V
• Max. switching current DC: 10 A
• Overheating protection: Yes
• Overload protection: Yes
• Range: Up to 40 m indoors (depending on local conditions)
• Z-Wave S800
• Operating temperature: -20°C to 40°C
• Humidity: 30% to 70% RH
• Maximum altitude: 2000 m.
