Shelly Wave 1 Mini EU LR
Switch actuatorMore than 10 pieces in stock at supplier
Operating voltage2
Product details

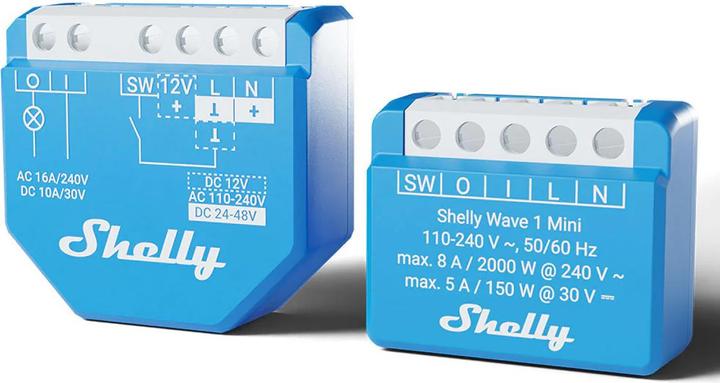

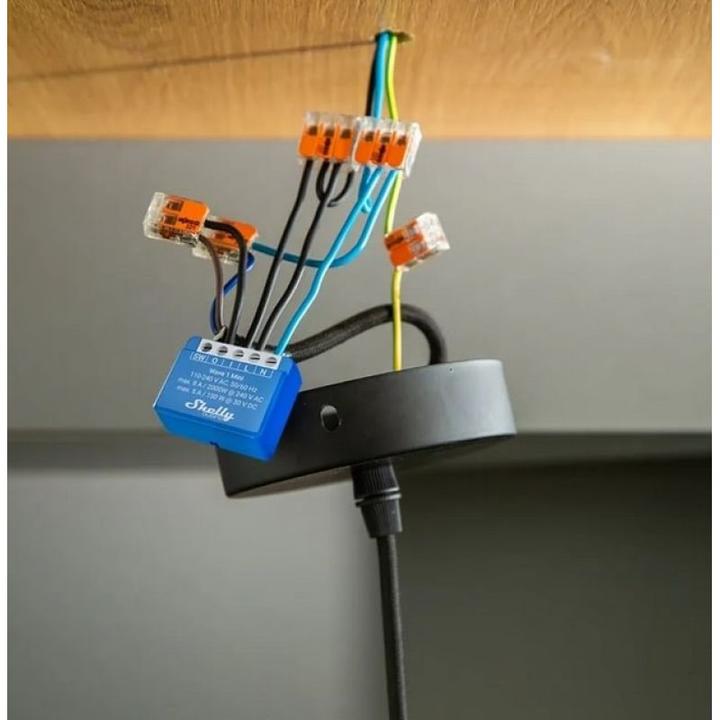

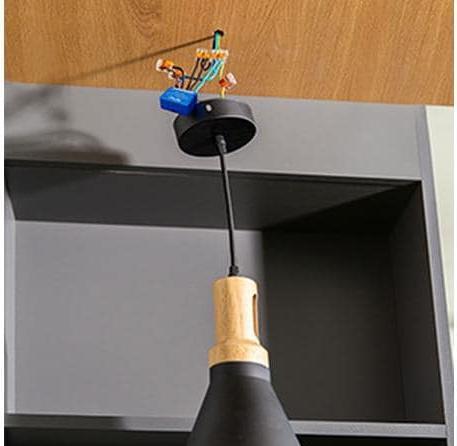

The Shelly Qubino Wave 1 Mini is a compact, wireless switch actuator based on Z-Wave technology. With a 1-channel relay that supports a maximum load of 8 amps, this device is ideal for installation behind switches, sockets or lamp outlets. It enables easy control and automation of lighting, garage doors, irrigation systems and other electrical devices. Thanks to its small size, the Shelly Qubino Wave 1 Mini fits into most wall and ceiling boxes and can be easily controlled via the Shelly Cloud or other Z-Wave platforms. Installation is straightforward and the device can be operated with an operating voltage of 110-230V AC. It also offers the option of connecting 12V devices via the potential-free contact, which significantly expands the possible applications. Supports Z-Wave 800 Series for improved performance and range. Extremely low standby consumption of only 0.3 W. Compatible with various smart home platforms such as Fibaro and Home Assistant. Automatic setup with SmartStart for easy installation. Security 2 security protocol for maximum data protection.
Actuator type | Switch actuator |
Operating voltage | 240 V |
Mounting type | Flush-mounted |
Smart Home Protocol | Z-wave |
communicating | Wireless |
Items per sales unit | 1x |
Item number | 62585334 |
Manufacturer | Shelly |
Category | Actuator |
Manufacturer no. | 3800238071929 |
Release date | 30.9.2025 |
External links |
Colour | Blue |
Exact colour description | Blue, Light blue |
Material group | Plastic |
Material | Plastic |
Actuator type | Switch actuator |
Max. Switching capacity | 2000 W |
rated current | 8 A |
Operating voltage | 240 V |
Number of switching outputs | 1x |
Mounting type | Flush-mounted |
Smart home | Compatible |
Smart Home Protocol | Z-wave |
communicating | Wireless |
Radio frequency | 868400000 Hz |
Requires Smart Home Hub | Yes |
Country of origin | China |
CO₂ emissions | 1,26 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1x |

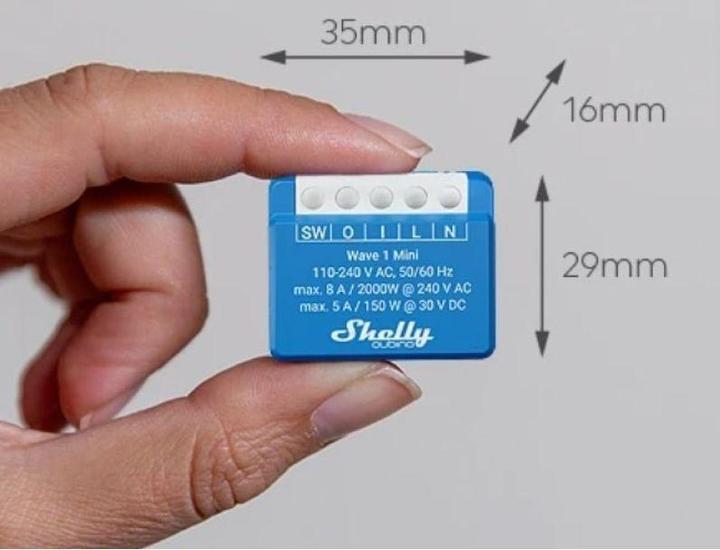

Length | 29 mm |
Width | 35 mm |
Height | 29 mm |
Weight | 19 g |
Product Safety |
Length | 8 cm |
Width | 5 cm |
Height | 2.50 cm |
Weight | 32 g |
