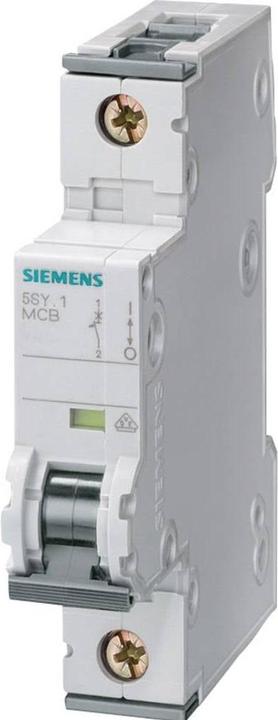

Siemens Dig.Industr. Circuit Breaker AC/DC 5SY5116-7

Manufacturer: Siemens Dig.Industr.
Designation: Circuit Breaker AC/DC C16A, 1-pole, T=70, 10kA
Type: 5SY5116-7
Installation Depth: 70 mm
Tripping Characteristic: C
Total Number of Poles: 1
Number of Protected Poles: 1
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Rated Switching Capacity Icn according to EN 60898 at 230 V: 10 kA
Voltage Type: AC/DC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 10 kA
Frequency: 50 Hz
Energy Limitation Class: 3
Flush Mounting: No
Switching Neutral Conductor: No
Overvoltage Category: 3
Degree of Pollution: 3
Additional Devices Possible: Yes
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature During Operation: -40 to 70 °C
Connectable Conductor Cross-Section Multi-Wire: 0.75 to 35 mm²
Connectable Conductor Cross-Section Single-Wire: 0.75 to 35 mm²
Explosion Protected: No

Siemens Dig.Industr. Circuit Breaker AC/DC 5SY5116-7: Additional Details
All-Current Circuit Breaker DC 220V AC 230/400V 10kA, 1-pole, C, 16A
The SENTRON 5SY circuit breakers provide safe short-circuit and overload protection for residential buildings, commercial buildings, and special industrial applications. Tool-free installation and removal of the device using a double slider. Any combination of conductors and busbars through a double-chamber terminal. Easy wiring of the supply through the rear busbar. The 5SY circuit breakers are available in 1-, 2-, 3-, 4-, as well as in 1+N and 3+N pole configurations. The complete accessories are universally applicable for all 5SY circuit breakers. Simply safe with SENTRON protective devices.
