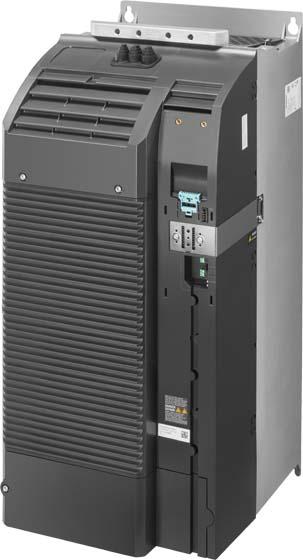

SINAMICS G120 POWER MODULE PM240-2 unfiltered SINAMICS G120 Power Module PM 240-2 unfiltered with integrated brake chopper 3AC500-690V +10/-20% 47-63Hz Power high overload: 75kW at 200% 3S, 150% 57S, 100% 240S, ambient temperature -20 to +50°C (HO), power low overload: 90kW at 150% 3S, 110% 57S, 100% 240S, ambient temperature -20 to +40°C (LO) 708x 305x 357 (HxWxD), FSF protection class IP20 without control unit and operating unit approved from CU firmware version V4.7 HF8 Power Module SINAMICS Power Module PM240-2 the ideal power module for standard applications in mechanical engineering for the SINAMICS G120 modular frequency inverter. As part of the SINAMICS G120 modular frequency inverter (consisting of power section, control unit, operating panel), the PM240-2 Power Modules (protection class IP20) have a brake chopper (four-quadrant applications) and are suitable for a wide range of applications in general mechanical engineering.The PM240-2 power module can be flexibly combined with various control units, depending on the scope of the application and safety requirements (e.g. STO, SS1, SBC, SLS, SDI, SSM). In combination with the CU230-2, CU240x-2 and CU250S-2 control units, the result is the functional SINAMICS G120 frequency inverter. The PM240-2 with protection class IP20 is a built-in device for the control cabinet in a power range from 0.55 kW to 250 kW, as well as three voltage variants: 200 V, 400 V and 690 V. The power modules are available unfiltered and unfiltered. The power modules are available unfiltered or with an integrated class A mains filter and in seven sizes from FSA to FSG. The power module is also available as a push-through version to optimise heat dissipation outside the control cabinet. The sizes also offer Safety Integrated. Due to the robust design, cable lengths of up to 450 metres (size FSF/FSG) can be achieved. Shielding plates and shield connection sets are available for EMC-compliant wiring.SINAMICS - simply my drive.
