Power: 0.75 kW
Phase: 1
Supply voltage: 230 V
Rated current: 4.2 A
Output frequency: 0 to 550 Hz
Ambient temperature: -10 to +60 °C
Total width: 127.8 mm
Total length: 68 mm
Total depth: 142 mm
Fieldbus communication type: USS/Modbus RTU
Mounting type: Side-by-side mounting, wall mounting

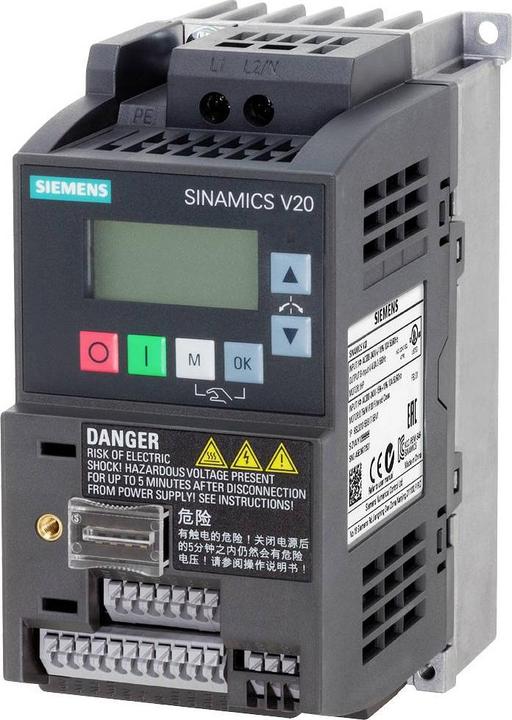

Sinamics V20 is a single-phase input inverter without a filter. It is a cost-effective, reliable, and user-friendly inverter that can cover all basic applications. Features and benefits include single-phase input, no filter, USS and Modbus RTU on connection terminals, a wide voltage range, ECO mode for Vf and V²f, improved cooling design, and parameter loading without a power supply. It can be mounted using through-hole or wall mounting.

Applications include centrifugal pumps, centrifugal/axial fans, compressors, conveyor belts, and single-phase drives in process technology.
