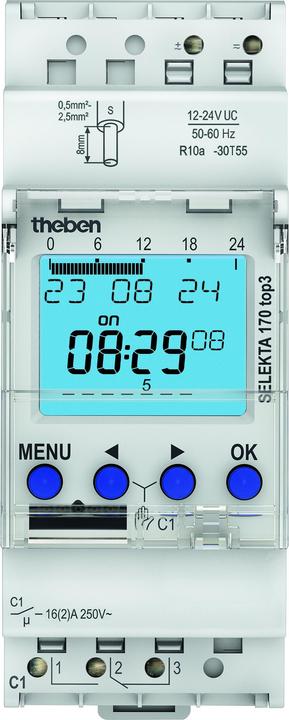

Theben digital timer 12-24 V SELEKTA170top312-24V

Manufacturer: Theben
Description: Digital timer 12-24 V Astro program, 1 channel
Type: SELEKTA170top312-24V
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 12-24 V
Type of supply voltage: AC/DC
Backup time in years: 10
Accuracy per day: 0.25 s
Text display: yes
External programming: yes
With memory card: no
60 min program: yes
24 h program: yes
Weekly program: yes
Annual program: no
Holiday program: yes
Pulse program: no
Cycle program: no
Astro program: yes
Random program: no
Operating hour counter: yes
Network synchronized: no
Quartz controlled: yes
Radio controlled: no
Radio controlled (DCF77): no
GPS: no
Contact type: Changeover (NO/NC)
Number of contacts: 1
Output signal: other
Shortest switching time channel 1: 1 min
Number of memory slots: 56
Automatic summer/winter time changeover: yes
Suitable for manual operation: yes
External push button input: no
Switching preselection: yes
Rated switching current at 250 V AC: 16 A
Max. switching power LED: 20 W
Potential-free switching contact: yes
Protection class (IP): IP20
Width in division units: 2
Width: 35 mm
Height: 128 mm
Depth: 60 mm

Further details: Digital timer for DIN rail, 12-24 V, 1 channel, Astro and weekly program, width 2 TE, astronomical switching function, position data programmable via coordinates or country-city list, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum manipulation security, timer programs can only be transferred from the app to the timer when the Bluetooth OBELISK top3 is inserted in the timer, 100% compatible with top2, 0.4 Watt standby power, DuoFix terminal blocks, backup time and programmed summer/winter time changeover, OBELISK interface for PC programming.
