Wago Energy meter (MID)

Price in EUR including VAT
Delivered between Fri, 11.7. and Wed, 16.7.
More than 10 pieces in stock at supplier
free shipping

Product details

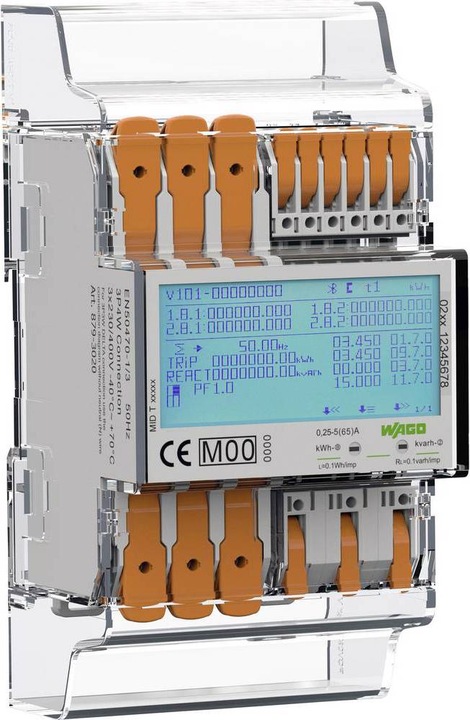

Energy Meter (MID). To optimize energy consumption, comprehensive energy measurement is necessary. Wago now offers new energy meters in its portfolio that provide numerous advantages. They utilize push-in connection technology with a lever, making them very easy and time-saving to connect. The devices have a width of only 72 mm for direct measurement, saving users a significant amount of space in the control cabinet. In addition to measuring active and reactive energy, the energy meters also capture network frequency, as well as current, voltage, and power for all phases. The large illuminated display allows users to see all energy quality characteristics at a glance. The new energy meters are true communication professionals. All devices feature both an M-Bus and a Modbus interface, which users can choose to use. Additionally, two S0 interfaces are available for both energy directions, with adjustable pulse rates. The configuration and operation of the new meters are very straightforward: the large display facilitates operation through the integrated sensitive controls. Furthermore, a configuration app can be used, which communicates with the device via Bluetooth. With the new energy measurement devices, a wide range of applications can be realized in building technology or industry - the MID compliance declaration also allows for applications involving consumption billing.

Key specifications

measurement module
Kilowatt hours
Maximum current
65 A
Energy meter type
Energy meter
mounting style
Top-hat rail
Nominal voltage
400 V
Item number
18544680

General information

Manufacturer
Wago
Category
Energy monitors
Manufacturer no.
879-3000
Release date
2.2.2022

Colour

Colour
CopperTransparentWhite

Energy meter property

Energy meter type
Energy meter
Functionalities
Electricity tariff adjustable
mounting style
Top-hat rail
measurement module
Kilowatt hours
Maximum current
65 A
Nominal voltage
400 V
Display type
Digital
Accuracy class
B

Safety

Protection type (IP code)
IP20IP51

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

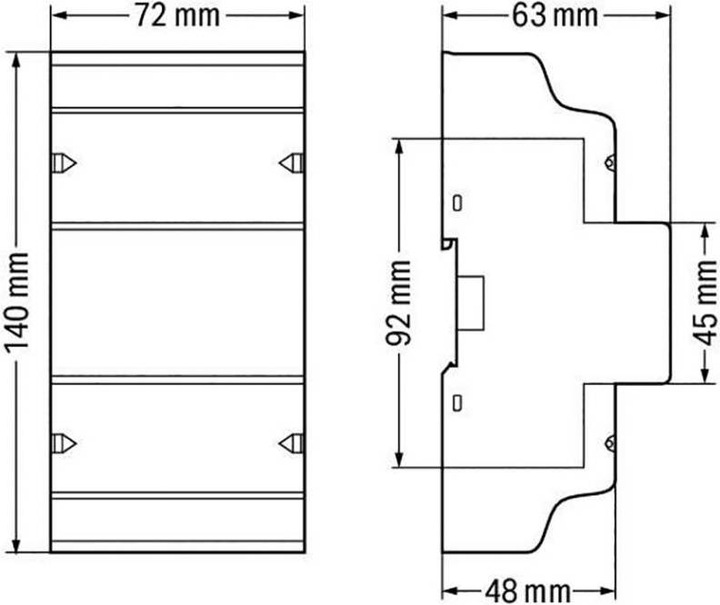

Product dimensions

Height
140 mm
Length
63 mm
Width
72 mm
Weight
280 g

Package dimensions

Length
15 cm
Width
9 cm
Height
8 cm
Weight
330 g

14-day cancellation right
30-day right of return
24 Months statutory warranty
