Best selling Energy monitors from Siemens
This page always stays fresh and updates automatically.
1. Siemens Energy cost meter
There are specific requirements for the measuring technology in this case. A third-party supply occurs when your company provides electricity for final consumption to another natural or legal person. This includes, for example, electricity consumption in rented premises, construction electricity, or a managed cafeteria. Leased devices such as vending machines, printers/copiers, or rented IT infrastructure are also considered third-party consumers.
Without self-supply – PAC2200 MID: Without self-supply, the recording and allocation of electrical active power (kWh) can be adequately performed with a MID-certified measuring device, the PAC2200 MID. The accrued shares of self-consumption and third-party consumption can be balanced and reported annually.
With self-supply – PAC2200 CLP: If you also consume self-generated electricity for which you pay a reduced EEG levy, a quarter-hourly measurement must ensure the simultaneity between self-generated and consumed energy by recording the active power (kWh) in 15-minute intervals and synchronizing with the legal time. The PAC2200 CLP (Certified Load Profile) supports this by generating the active power intervals in accordance with legal metrology and storing them for 2 years.
2. Siemens SIEM counter module
SIMATIC S7-1500, TM count 2x24V counter module, 2 channels for 24V incremental encoders or pulse generators, 3 DI, 2 DQ per channel. SIMATIC ET 200MP is a modular, scalable, and universally applicable peripheral system in IP20 and offers the same system advantages as the S7-1500. It allows for the shortest bus cycle times and fastest response times even with large quantities of data. The decentralized peripheral system is particularly easy to assemble, wire, and commission. Its scalable design enables you to tailor the peripheral station precisely to the specific needs on-site. Technology modules provide hardware-related signal pre-processing for fast counting, accurate measurement, position detection, and pulse width modulation for various sensors and actuators, as well as for controlling stepper motor drives and servo drives via the PTI interface.

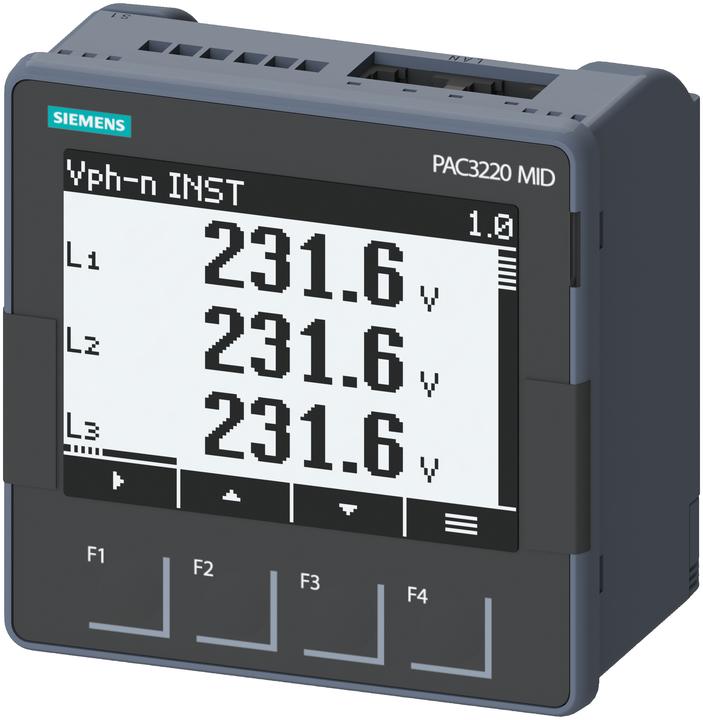

3. Siemens SENTRON Power Monitoring
Sentron PAC3220, calibrated MID, LCD 96x96 mm Power Monitoring Device, panel-mounted device for measuring electrical parameters, protocol: Modbus TCP, with graphical display, Ue 230/400 V, 50Hz, Ie x/1 A or x/5 A AC, additional optional auxiliary power supply 100 ... 250 V ±10 % AC/DC screw connection. The multifunction measuring device Sentron 7KM PAC3220 is designed for the precise capture of all important electrical measurement parameters in energy distribution to assess system conditions and power quality in the process and manufacturing industries, as well as for critical infrastructures such as hospitals and data centers. The multifunction measuring device 7KM PAC3220 accurately, reproducibly, and reliably captures all essential electrical characteristics for power supply, electrical branches, or individual consumers. It provides not only comprehensive information about your electrical installation and energy distribution but also important measurements for assessing system conditions. Thanks to its diverse communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS, and Modbus RTU for further processing of the measurement data. Additional modules allow for the implementation of more digital inputs and outputs, analog inputs, direct measurement of the neutral conductor, or residual current measurement. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. Sentron PAC - specialists in measurement data acquisition.
4. Siemens SIMATIC ET 200SP
The SIMATIC ET 200SP from Siemens is a state-of-the-art decentralized peripheral system designed for use in compact control cabinets. With its space-saving design and IP20 protection rating, it offers a flexible solution for various automation applications. The system supports up to 32 peripheral modules and 16 ET 200AL modules, ensuring high modularity and adaptability. Thanks to Multi Hot Swapping, modules can be quickly and easily replaced without needing to shut down the entire system. The integration of the MultiFieldbus interface module IM155-6MF allows for support of multiple Ethernet protocols, optimizing communication in different applications. A unified labeling system simplifies installation and service by providing clear identification of components. The SIMATIC ET 200SP is thus a future-proof solution tailored to the demands of modern automation technology.
- Supports up to 32 peripheral modules and 16 ET 200AL modules
- Multi Hot Swapping for quick module replacement
- Integration of the MultiFieldbus interface module for flexible protocol usage
- Unified labeling system for easy installation and service
- Future-proof automation solutions through innovative technology.

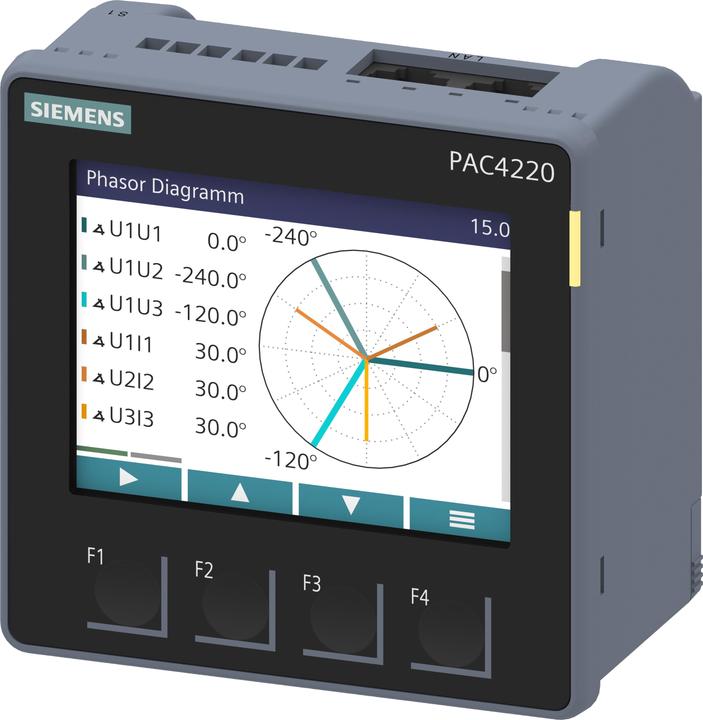

5. Siemens SENTRON measuring device
SENTRON PAC4220 is a power monitoring device featuring a color graphic TFT display PMD-III according to IEC61557-12. It has an active energy class of 0.2 (class 0.2S according to IEC62053-22), dimensions of 96x96 mm, and operates in a 3-phase system with a frequency range of 45 - 65 Hz. The rated voltage is 690/400 V, and the rated current can be x/1A or x/5A AC/DC. It supports a wide voltage power supply of 95 to 250 V ±10% (AC) and 110 to 270 V ±10% (DC). The device features screw terminal connections and is designed for panel mounting, allowing it to measure various electrical quantities including apparent, active, and reactive energy, as well as cos phi, THDu, THDi, and both even and odd harmonics per phase up to the 64th.
The SENTRON 7KM PAC4220 network quality measurement device accurately captures all essential electrical measurement values in energy distributions, helping to assess the condition of systems and network quality in process and manufacturing industries, as well as in critical infrastructures like hospitals and data centers.
The network analysis measuring device 7KM PAC4200 offers comprehensive information about your electrical installation and energy distribution, providing crucial measurement values for evaluating system condition and network quality. With various communication options, these devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS, and Modbus RTU.
Additional modules allow for the implementation of further digital inputs and outputs, analog inputs, neutral conductor direct measurement, residual current measurement, or RS485 gateway functionality. The 7KM PAC measuring devices are available in various versions to meet your specific requirements. SENTRON PAC specializes in measurement data acquisition.

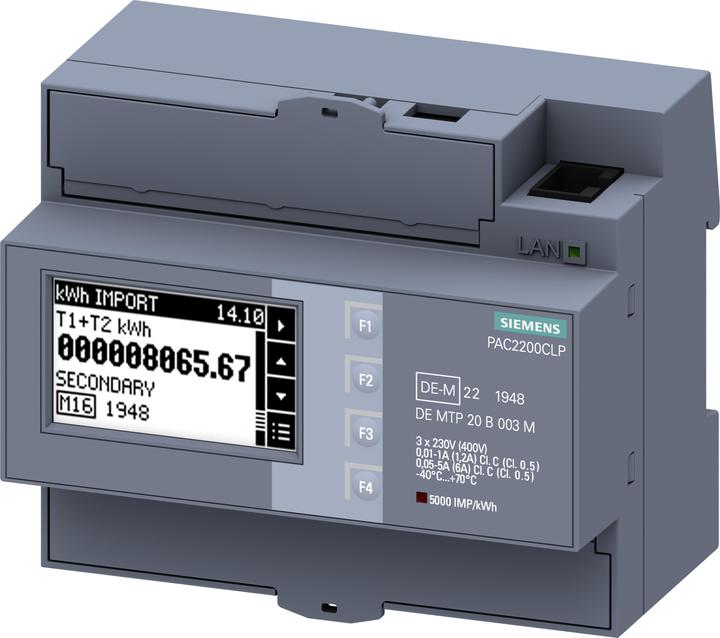

6. Siemens Sentron
SENTRON Measuring Device 7KM PAC2200 CLP L-L: 400V, L-N: 230V, x/1A & x/5A DIN rail device, 6TE, 3-phase, LAN interface, Modbus-TCP, LC display, MID approval, screw connection, self-powered. Certified apparent/active/reactive energy load profile storage, measurement and calibration law compliant according to PTB-A50.7.
The SENTRON 7KM PAC2200 energy meter is designed for calibrated measurement of energy consumption in single-phase and three-phase networks, such as in industrial facilities, utility buildings, offices, and apartments in multi-family homes, for billing purposes with a certified load profile (calibration law compliant according to PTB-A50.7).
The energy measuring devices 7KM PAC 2200, calibrated according to MID and PTB 50.7 (CLP), with extended functionality, accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers via transformer or direct measurement up to 65 A. They provide not only comprehensive information about your electrical installation and energy distribution but also important measurements for assessing the condition of the system.
For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP and PROFINET due to their diverse communication options. The 7KM PAC measuring devices are available in various versions to meet the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.

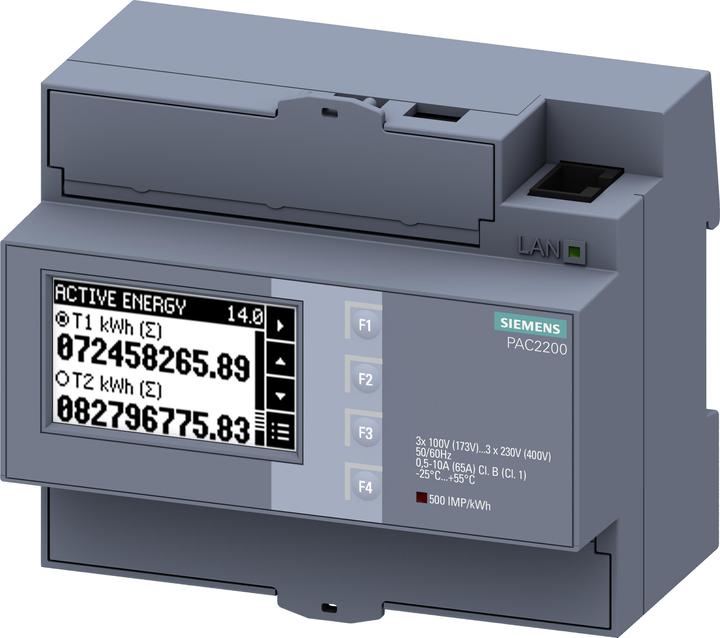

7. Siemens Digital Power Meter, 1/5A, M-bus 230Vac
SENTRON measuring device 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 5 A, DIN rail device, 3-phase, M-Bus, apparent, active, and reactive energy, self-powered, screw connection. The SENTRON 7KM PAC2200 energy meter measures energy consumption in single-phase and three-phase networks, for example in industrial plants, commercial buildings, offices, and apartments in multi-family homes. The 7KM PAC 2200 energy measuring devices with extended functionality accurately, reproducibly, and reliably capture energy values for feed-in, electrical departures, or individual consumers via transformer or direct measurement up to 65 A. They provide comprehensive information about your electrical installation and energy distribution, as well as important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems thanks to their diverse communication options via Modbus TCP, PROFINET, Modbus RTU, and M-Bus. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
8. Siemens 6ES71386BA010BA0 6ES7138-6BA01-0BA0 PLC accessories
SIMATIC ET 200SP, TM Position Input 1 counting and position detection module for RS-422 incremental encoders or SSI absolute encoders, 2DI, 2DQ suitable for BU type A0, packaging quantity: 1 piece. With SIMATIC ET 200SP, Siemens offers you a multifunctional and decentralized peripheral system that can be easily put into operation due to its space-saving design. It is approved for protection class IP20 and designed for installation in a compact control cabinet. The system ensures maximum flexibility, as you can quickly and easily swap the modules at any time thanks to the Multi Hot Swapping feature. In addition, the SIMATIC ET 200SP provides you with a wide range of different and fast communication paths. With the integration of the Multi Fieldbus Interface Module IM155-6MF, you have the flexibility to use the optimal protocol for your application, as this function supports multiple Ethernet protocols. Assembly and service are simplified by a uniform labeling system based on reference labeling plates and connection layouts with color coding. Siemens guarantees future-proofing through the integration of innovative and durable automation products, as they, as industry experts, are already focusing on tomorrow's technologies and thus redefining market standards. Continuous data availability, flexible application cases, and versatile integration options ensure optimal performance of the ET 200 products. Technology modules provide hardware-related signal preprocessing for fast counting, precise measurement, position detection, and pulse width modulation for various encoders and actuators.
9. Siemens Digital Power Meter, 65A, Modbus 230Vac
Siemens digital industrial device 7KM2200-2EA40-1EA1
Manufacturer: Siemens
Designation: Measuring device 65A
Type: 7KM2200-2EA40-1EA1
Meter type: electronic
Rated current (In): 65 A
Maximum current (Imax): 65 A
Rated voltage (Un) N-L: 3..276 V
Rated voltage (Un) L-L: 3..480 V
Connection type: three-phase/four-wire
Design: direct measurement
Energy type: active and reactive power
Suitable for: consumption/supply
Tariff version: two-tariff
Load profile measurement: no
Reverse flow prevention: yes
Calibrated: no
Pulse output: electrical
Pulse type: S0
Display type: digital
Width in division units: 6
With lock code: yes
Number of digits: 12
Protection class (IP): IP40
Siemens digital industrial device 7KM2200-2EA40-1EA1: additional details SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 65 A, DIN rail device, three-phase, Modbus TCP, apparent/active/reactive energy, self-powered, screw connection.
Energy meter SENTRON 7KM PAC2200 for measuring energy consumption in single-phase and three-phase networks, e.g., in industrial plants, purpose-built buildings, offices, and apartments in multi-family houses. The energy measuring devices 7KM PAC 2200 with extended functionality accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers through transformer or direct measurement up to 65 A. They not only provide comprehensive information about your electrical installation and energy distribution but also important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, Modbus RTU, and M-Bus, thanks to their diverse communication options. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
EAN: 4001869538594.
10. Siemens 7KM3220-0BA01-1DA0
The SENTRON PAC3220 LCD 96x96 mm power monitoring device is a panel-mounted device for measuring electrical parameters. Protocol: Modbus TCP. With a graphical display. Rated voltage: 690/400V, 45-65Hz. Rated current: X/1A or X/5A AC. Auxiliary power: 100 - 250 V ±10 % AC/DC. Screw terminal connection.
The multifunction measuring device SENTRON 7KM PAC3220 accurately captures all important electrical measurements in energy distribution for assessing system conditions and power quality in the process and manufacturing industries, as well as in critical infrastructures such as hospitals and data centers. It provides comprehensive information about your electrical installation and energy distribution, along with essential measurements for evaluating the condition of the system.
Thanks to various communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS, and Modbus RTU. With additional modules, more digital inputs and outputs, analog inputs, direct measurement of the neutral conductor, or residual current measurement can be implemented. The 7KM PAC measuring devices are available in various versions to suit your requirements. SENTRON PAC - specialists in measurement acquisition.
