Best selling Junction boxes from Stahl
This page always stays fresh and updates automatically.

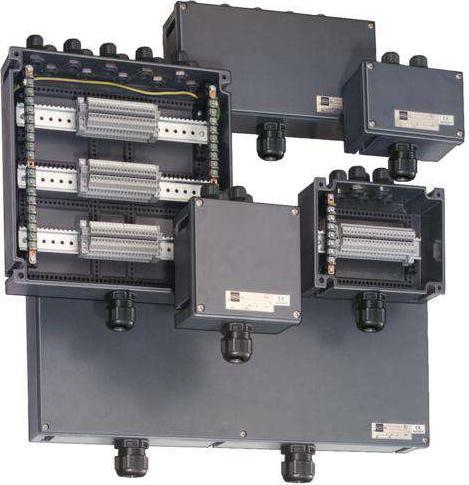

1. Stahl 8146/1S73-C1162
The terminal box type 8146/1S73-C1162 from Stahl is an explosion-proof device designed for use in hazardous environments. With a rated operating voltage of up to 690 V and a connection cross-section of 4 mm², this product offers a reliable solution for the safe connection of electrical cables. The housing is made of fiberglass-reinforced polyester resin, which is not only robust but also suitable for outdoor use. The terminal box meets the requirements of protection classes II 2 G Ex eb IIC T6....T5 Gb for gas explosion protection and II 2 D Ex tb IIIC T80 °C ....T95 °C Db for dust explosion protection. With a temperature range of -30 °C to +40 °C, it is versatile and ensures high operational safety in various environments. The installation is surface-mounted, which facilitates installation and increases flexibility.
- Suitable for zones 1, 2, 21, and 22 for explosion-risk areas
- Protection class IP66 for high resistance to dust and water
- Temperature range of -30 °C to +40 °C for versatile applications
- Housing made of fiberglass-reinforced polyester resin for increased robustness
- Mounting type: surface-mounted for easy installation.

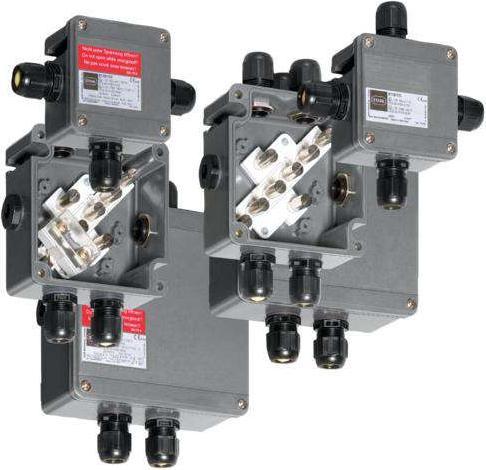

2. Stahl 133084 Junction box EEx
The EEx junction box from Stahl is an explosion-proof solution designed for use in hazardous areas. It meets the requirements for zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of 60 V AC and a connection cross-section of up to 4 mm², it is versatile in application. The housing is made of fiberglass-reinforced polyester resin, known for its robustness and durability. The junction box is suitable for an ambient temperature range of -40 to +75 °C and offers an IP66 protection rating, making it ideal for demanding environments. The installation is surface-mounted, which simplifies the setup process. This junction box is a reliable choice for applications where safety and explosion protection are of utmost priority.
- Use in explosion-hazardous areas (zones 1, 2, 21, 22)
- Gas explosion protection: II 2 G Ex ia ib IIC T6 Gb
- Dust explosion protection: II 2 D Ex tb IIIC T80 °C Db
- Robust housing made of fiberglass-reinforced polyester resin
- IP66 protection rating for high resistance to environmental influences.

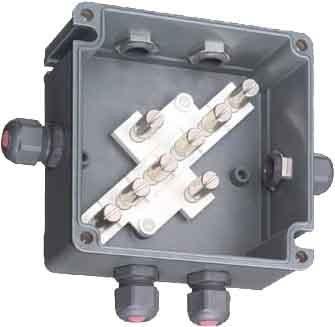

3. Stahl 8118/131-814 EEX junction box 8xM20
The junction box 8118/131-814 from Stahl is an explosion-proof solution designed for use in hazardous environments. It meets the requirements for Zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of 750 V and a connection cross-section of up to 10 mm², this junction box is versatile. The housing is made of fiberglass-reinforced polyester resin, known for its robustness and durability. The junction box is suitable for temperatures ranging from -40 °C to +40 °C and offers an IP66 protection rating, making it ideal for use in demanding environments. The installation is surface-mounted, which facilitates installation and increases flexibility.
- Explosion-proof for Zones 1, 2, 21, and 22
- Housing made of fiberglass-reinforced polyester resin
- IP66 protection rating for high resistance
- Operating voltage up to 750 V and connection cross-section up to 10 mm²
- Temperature range from -40 °C to +40 °C.

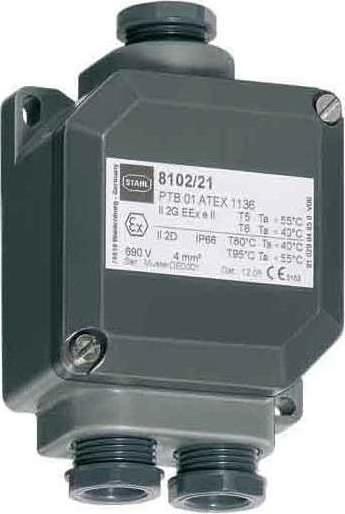

4. Stahl Junction box
The junction box 132988 Ex-E 8102/21-31 from Stahl is an explosion-proof solution designed for use in hazardous environments. It meets the requirements for zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of up to 690 V and a maximum conductor cross-section of 4 mm², this junction box is versatile. The housing is made of fiberglass-reinforced polyester resin, known for its robustness and durability. The junction box is suitable for an ambient temperature range of -50 to +55 °C and offers high impact resistance (IK10). It is designed for surface mounting and features multiple entries for flexible installation.
- Explosion-proof for zones 1, 2, 21, and 22
- Made from fiberglass-reinforced polyester resin
- Protection class IP66 for high resistance to dust and water
- Operating temperature range of -50 to +55 °C
- Maximum conductor cross-section of 4 mm² with 5 connection terminals.
5. Stahl Junction box 132989Ex-I
The junction box 132989Ex-I from Stahl is an explosion-proof solution designed for use in hazardous environments. It meets the requirements for zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of 60 V and a maximum connection cross-section of 2.5 mm², this junction box is versatile. The housing is made of fiberglass-reinforced polyester resin, which is not only robust but also suitable for outdoor use. The junction box is designed for temperatures ranging from -50 °C to +70 °C and offers a high protection rating of IP66, making it ideal for harsh environments. Installation is surface-mounted, which facilitates setup and supports functionality in various applications.
- Explosion-proof for zones 1, 2, 21, and 22
- Housing made of fiberglass-reinforced polyester resin
- High protection rating IP66 for outdoor use
- Operating temperature range from -50 °C to +70 °C
- Suitable for gas and dust explosion protection.
6. Stahl 8146/1000-C923
Stahl cable junction box 8146/1000-C923
Manufacturer: Stahl
Designation: Cable junction box 315/400A
Type: 8146/1000-C923
The cable end boxes in the R. STAHL Series 8146 comprise robust glass fibre reinforced Ex e enclosures. They are equipped with 35 to 185 mm² terminals. These are suitable for voltages up to 690 V, with a maximum rated operational current of 400 A depending on the enclosure version. The incoming and outgoing cables are fed into the enclosures via cable glands.
Specifications:
- Explosion-protected, Type: 8146/1000-C923
- AC rated operational voltage: 690 V
- Rated operational current, Connection cross-section: 185 mm²
- Enclosure material: Polyester resin, glass fibre reinforced
- Enclosure colour: Dark grey
- Dimensions (W x H x D): 681.5 x 681.5 x 150 mm
- Application range (zones): 1, 2, 21, 22
- Gas explosion protection: II 2 G Ex eb IIC T6....T5 Gb
- Dust explosion protection: II 2 D Ex tb IIIC T80 °C ....T95 °C Db
- Ambient temperature: -30 to +50 °C
- Silicone-free: No
Features:
- 12 pcs M12 bolt-type terminal 1-conductor, 185 mm²
- 4 pcs stud terminals M12 1-conductor, 185 mm², GN-YE
- 0 PE rail
- 0 equipotential bonding rail
- 0 mounting rail
- 4 pcs threaded holes without cable entry, M75
- Without flange
EAN: 4046827081163.
7. Stahl 133253 Junction box EEx
The STAHL 133253 junction box is an explosion-proof solution designed for use in hazardous areas. With a robust housing made of fiberglass-reinforced polyester resin, it offers high resistance to mechanical impacts and chemical substances. This junction box is suitable for use in Zones 1, 2, 21, and 22 and meets the requirements for gas and dust explosion protection. The rated operating voltage is 750 V, and the connection cross-section is designed for 6 mm². The junction box is suitable for ambient temperatures ranging from -40 °C to +40 °C and provides an IP66 protection rating, making it ideal for use in demanding environments. The installation is surface-mounted, allowing for easy setup. This junction box is a reliable choice for applications where safety and durability are of utmost importance.
- Explosion-proof for Zones 1, 2, 21, and 22
- Housing made of fiberglass-reinforced polyester resin
- IP66 protection rating for high durability
- Operating voltage up to 750 V and connection cross-section of 6 mm²
- Suitable for ambient temperatures from -40 °C to +40 °C.
8. Stahl 133123 Terminal box EEx e 4xM25
The Klemmenkasten EEx e 4xM25 from Stahl is an explosion-proof junction box designed for use in hazardous areas. With a rated operating voltage of up to 690 V and a connection cross-section of 2.5 mm², it provides a reliable solution for the safe distribution of electrical energy. The housing is made of fiberglass-reinforced polyester resin, which is not only robust but also resistant to various environmental influences. The junction box is suitable for use in Zones 1, 2, 21, and 22 and meets the requirements for gas and dust explosion protection. The ambient temperature can range from -50 °C to +55 °C, making it versatile for various applications. With a compact design and an IP20 protection rating, this junction box is ideal for indoor applications.
- Grounding plate for added safety
- Suitable for use in explosion-prone areas
- Robust housing made of fiberglass-reinforced polyester resin
- Versatile use in extreme temperatures from -50 °C to +55 °C
- Includes Weidmüller terminals for easy installation.
9. Stahl 133114 Junction box EEx
The STAHL 133114 junction box is an explosion-proof junction box designed for use in hazardous environments. It meets the requirements for zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of 750 V and a connection cross-section of up to 6 mm², it is suitable for various applications. The housing is made of fiberglass-reinforced polyester resin, ensuring high resistance and durability. The junction box is designed for temperatures ranging from -60 °C to +40 °C and has an IP66 protection rating, making it ideal for use in demanding environments. It is surface-mounted, allowing for easy installation. This junction box is a reliable solution for the safe distribution of electrical connections in explosion-prone areas.
- Explosion-proof for zones 1, 2, 21, and 22
- Housing made of fiberglass-reinforced polyester resin
- IP66 protection rating for high durability
- Operating temperature range from -60 °C to +40 °C
- Suitable for connection cross-sections up to 6 mm².

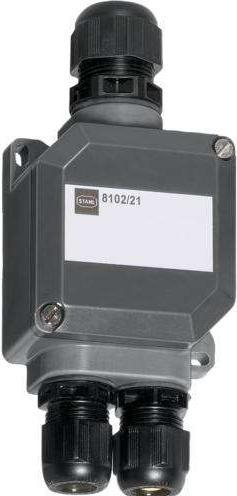

10. Stahl STAHLR 8102/21-32-C1013 8102/21-32-C1013, Junction box Ex e, Poly 81022132C1013
The STAHLR 8102/21-32-C1013 junction box is an explosion-proof solution designed for use in hazardous environments. It meets the requirements for Zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. The housing is made of fiberglass-reinforced polyester resin, ensuring high resistance to environmental influences. With a rated operating voltage of up to 690 V and a connection cross-section of 4 mm², this junction box is suitable for various applications. Its dimensions of 71 x 161 x 45 mm make it compact and easy to install. The IP66 protection rating ensures that the junction box is dust-tight and protected against strong water jets, making it ideal for outdoor use. This junction box is a reliable choice for professionals who require safety and durability in explosion-prone areas.
- Explosion-proof for Zones 1, 2, 21, and 22
- Housing made of fiberglass-reinforced polyester resin
- IP66 protection rating for dust and water resistance
- Rated operating voltage up to 690 V
- Temperature range from -40 °C to +40 °C.
Junction box
EUR71,90
Stahl STAHLR 8102/21-32-C1013 8102/21-32-C1013, Junction box Ex e, Poly 81022132C1013
