Best selling Motion sensors from Optex
On this page you’ll find a ranking of the best Motion sensors from Optex. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Optex Outdoor motion detector HX-40 AM 12m, cover
Optex Outdoor Motion Detector HX-40 AM - PIR Motion Detector with Cover Monitoring
The Optex Outdoor Motion Detector HX-40 AM (AM = Anti-Masking) is wired and features two newly developed pyro elements from Optex, which create a unique combination of 94 detection zones. These two pyro elements are equipped with a so-called AND combination, which continuously monitors the upper and lower areas of each zone. In combination with an alarm system, the Optex Outdoor Motion Detector HX-40 AM, with a detection angle of 85° and a range of up to 12 meters, is ideally suited for monitoring gardens, entrances, and facades.
- Integrated Anti-Masking (AM)
- Wired
- N.C. tamper output triggers when covered
- Two separate Optex special pyro elements with double conductive shielding
- Variable range, max. 12 meters, adjustable
- Up to 3 meters mounting height
- Intelligent temperature compensation
- Protection class IP 55
- Changeover relay output
- Operating voltage 9.5-18 V DC.

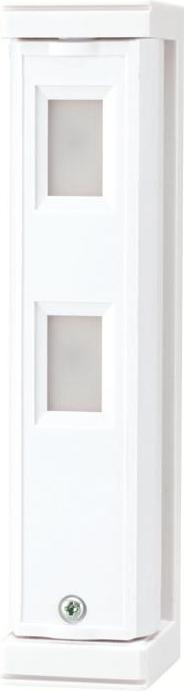

2. Optex Aussenbewegungsmelder FTN-RAM Abdeck,Funk
The Optex FTN-RAM outdoor motion detector is an innovative solution for monitoring outdoor areas. With a range of up to 5 meters and a detection angle of 180 degrees, this motion detector is ideal for use on terraces, balconies, and entryways. The wireless version allows for easy installation without cables, increasing flexibility in placement. The FTN-RAM is equipped with a special anti-masking feature that ensures the detector is not affected by external influences such as rain or snow. Additionally, it offers a high protection rating of IP55, making it particularly robust against weather conditions. The battery-operated detector can be used in conjunction with a wireless alarm system, providing added security. Its intelligent AND logic ensures that an alarm is only triggered by actual movement, minimizing false alarms.
- Anti-masking feature to prevent false alarms
- Two independent pyro elements for improved detection
- Multifunctional additional housing for the transmitter
- High protection rating IP55 for outdoor use
- Intelligent AND logic to reduce false alarms.
3. Optex Wireless outdoor motion detector FTN-R
Optex Outdoor Motion Detector FTN-R - PIR Motion Detector with 2x5m Beams, Wireless Version
The Optex Outdoor Motion Detector FTN R (R = Wireless) is a battery-operated motion detector. With a range of 5 meters, the Optex Outdoor Motion Detector FTN R is particularly suitable for use on terraces and balconies, as well as on window fronts or in entryways.
The Optex Outdoor Motion Detector can be wired to the Secvest wireless opening detector. In this setup, the wireless opening detector serves as a transmitter for the Secvest wireless alarm system. The Optex Outdoor Motion Detector is powered by the battery of the Secvest wireless opening detector. The same principle can also be applied with the wireless sensor input from Lupus.
- Battery-operated (wireless)
- Integration of wireless transmitter, e.g., Secvest wireless opening detector
- Multifunctional additional housing for the wireless transmitter
- Two independent pyro elements with double conductive shielding
- Detection range of 2m or 5m long zone
- 190° horizontal flexibility
- Protection class IP 55
- Perfect pet immunity
- Intelligent AND logic
- Changeover relay output
- Selectable N.C./N.O. alarm output
- Selectable N.C./N.O. sabotage output
- Operating voltage 2.5-10 V DC.
4. Optex 60m Lichtschranke AX-200 TF 2 Strahl, 4 Kanal
The Optex AX-200 TF light barrier is a highly advanced motion detector specifically designed for outdoor use. With a range of up to 60 meters, this device provides a reliable solution for security applications. The light barrier utilizes two pulsed infrared beams and allows for adjustment with four selectable light frequencies, preventing crosstalk between frequencies. The wired connection ensures stable and secure transmission. The LED display aids in the precise adjustment of the beams, while the alarm memory enables effective monitoring. Installation is flexible, as it can be mounted on walls, posts, or columns, making it easier to set up in various environments.
- Two pulsed infrared beams for enhanced security
- Four adjustable light frequencies to avoid crosstalk
- Range of 60 m outdoors and 120 m indoors
- LED display for precise fine beam adjustment.
5. Optex SX-360Z motion detector
The SX-360Z motion detector from Optex is a highly advanced security device designed for reliable motion detection in various environments. With its cutting-edge technology, this motion detector offers precise and rapid response to movements, making it ideal for use in residential and commercial spaces. The SX-360Z is characterised by its easy installation and user-friendliness, making it a practical solution for monitoring both indoor and outdoor areas. Manufactured in China, the motion detector is offered in a single unit for sale. Its versatile applicability and ability to minimise false alarms make it a valuable addition to any security system. The SX-360Z is designed to provide comprehensive coverage, thus enhancing the sense of security in your surroundings.

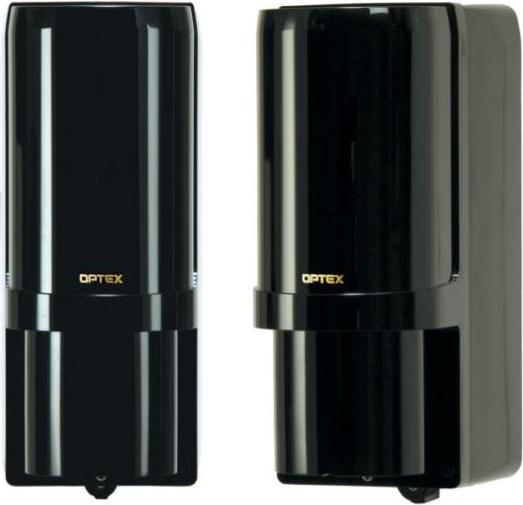

6. Optex 30m Lichtschranke AX-100 TFR 4Kanal, Funkversion
The Optex AX-100 TFR light barrier is an innovative battery-operated motion detector specifically designed for outdoor use. With a range of up to 30 meters outdoors and 60 meters indoors, this device offers a reliable solution for monitoring large areas. The light barrier features four adjustable light frequencies that prevent crosstalk between multiple devices, ensuring precise detection. Installation is flexible, as it can be mounted on walls, posts, or columns. Additionally, the light barrier has an IP55 protection rating, making it resistant to dust and splashes. The ability to adjust the beam interruption time enhances adaptability for various application scenarios.
- 4 adjustable light beam frequencies to avoid crosstalk
- Battery-operated for flexible installation without cables
- Range of 30 m outdoors and 60 m indoors
- Adjustable beam interruption time for individual customization
- IP55 protection rating for reliable outdoor use.

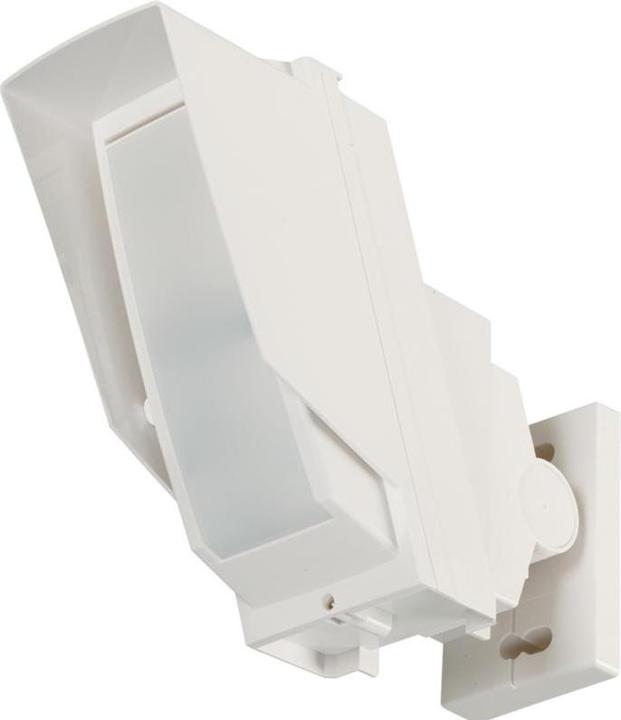

7. Optex Outdoor motion detector HX-80 RAM 24m, wireless
Optex Outdoor Motion Detector HX-80 RAM - PIR Long-Range Motion Detector, Cover Monitoring, Wireless Version
The Optex Outdoor Motion Detector HX-80 RAM (R=Wireless) is a battery-operated long-range detector that can be easily installed in many different locations. It features two pyro elements equipped with a so-called AND combination to prevent false alarms caused by small animals. Additionally, the Optex Outdoor Motion Detector HX-80 RAM is equipped with anti-masking (AM=Spray Detection).
With a range of up to 24 meters, the Optex Outdoor Motion Detector HX-80 RAM is ideal for garden monitoring as well as for use in warehouses and commercial areas.
The Optex Outdoor Motion Detector can be wired to the Secvest wireless opening detector. In this setup, the wireless opening detector acts as a transmitter for the Secvest wireless alarm system. The Optex Outdoor Motion Detector is powered by the battery of the Secvest wireless opening detector. The same principle can also be applied with the wireless sensor input from Lupus.
- Battery-operated
- Installation of wireless transmitter (= R) e.g. Secvest wireless opening detector
- Spray detection (= AM)
- N.C. tamper output activates on cover
- Detection area 24 x 2 m
- Detection range adjustable
- Two special pyro elements
- With double conductive shielding
- Protection class IP 55
- Changeover relay output
- Operating voltage 2.5-9 V DC.
8. Optex 60m Lichtschranke AX-200 TFR 4Kanal, Funkversion
The Optex AX-200 TFR light barrier is a versatile and reliable motion detector specifically designed for outdoor use. With a range of up to 60 meters outdoors and 120 meters indoors, this device provides an effective solution for monitoring large areas. The light barrier operates with four adjustable light frequencies that prevent interference between multiple devices, ensuring precise detection. Installation is flexible, as the light barrier can be mounted on walls, posts, or columns. Additionally, it is battery-powered and can be connected to other wireless opening detectors to form a comprehensive alarm system. The IP55 protection rating ensures that the device is protected against dust and splashes, enhancing its durability and reliability in various weather conditions.
- 4 adjustable light beam frequencies to avoid crosstalk
- Battery-powered for flexible installation
- Maximum range of 530 m for extensive coverage
- Adjustable beam interruption time for individual customization
- IP55 protection rating for outdoor use in various conditions.
9. Optex 20m IR-Lichtschranke AX-70 TN 2 Strahlen
The Optex AX-70 TN light barrier is a highly advanced motion detector specifically designed for outdoor use. With a range of up to 20 meters outdoors and 40 meters indoors, this device provides a reliable solution for monitoring areas. The light barrier operates wired and allows for flexible adjustment of the interruption time of the infrared beam to optimally tailor the alarm trigger to the respective environmental conditions. The construction is extremely waterproof (IP65), making it ideal for use in various weather conditions. Installation can be done on both walls and posts, allowing for versatile mounting options. With two pulsed infrared beams, the AX-70 TN ensures precise motion detection, thereby enhancing security in monitored areas.
- Fixed frequency setting for reliable performance
- Maximum range of 200 m for comprehensive coverage
- Extremely waterproof construction (IP65)
- Flexible wall and post mounting
- Wired transmission for stable signal quality.
10. Optex Outdoor motion detector HX-40 RAM 12m, wireless
Optex Outdoor Motion Detector HX-40 RAM - PIR Motion Detector with Cover Monitoring, Wireless Version
The Optex Outdoor Motion Detector HX-40 RAM (R=Wireless) is a battery-operated infrared motion detector that can be easily installed in various locations. It features two pyro elements equipped with a so-called AND combination to prevent false alarms caused by small animals. Additionally, the Optex Outdoor Motion Detector HX-40 RAM is equipped with an anti-masking function. With a detection angle of 85° and a range of up to 12 meters, the Optex Outdoor Motion Detector HX-40 RAM is ideal for garden monitoring.
The Optex Outdoor Motion Detector can be wired to the Secvest wireless opening detector. In this setup, the wireless opening detector acts as a transmitter for the Secvest wireless alarm system. The Optex Outdoor Motion Detector is powered by the battery of the Secvest wireless opening detector. The same principle can also be applied with the wireless sensor input from Lupus.
- Installation of a wireless transmitter, e.g., Secvest wireless opening detector
- Integrated anti-masking function
- Battery-operated
- N.C. alarm output activates when covered
- Two separate Optex special pyro elements with double conductive shielding
- Variable range, max. 12 meters, adjustable
- Up to 3 meters mounting height
- Intelligent temperature compensation
- Protection class IP 55
- Changeover relay output
- Operating voltage 2.5-9 V DC.
