Best TECE products in the Shower channels category
On this page you'll find a ranking of the best TECE products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

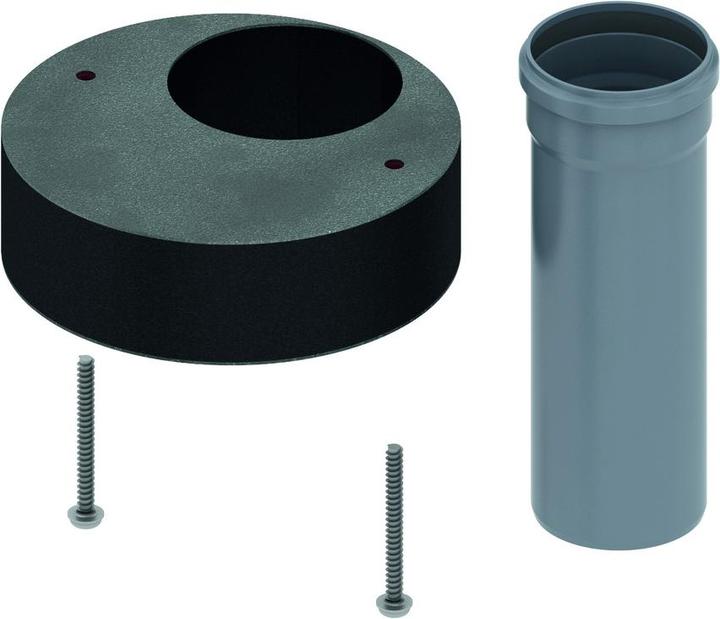

1. TECE Drainline Fire Protection Set FireStop DN50
DN 50 perpendicular to the highly fire-resistant sealing of ceiling penetrations in solid ceilings up to 120 minutes. Classification according to DIN EN 13501 for fire protection class El 120. Set consisting of: fire protection collar, 2 cross-slotted head screws, identification plate. Required core hole drilling: diameter = 130 mm (minimum diameter = 129 mm, maximum diameter = 133 mm). Application: solid ceilings from 150 mm to 325 mm ceiling thickness. Connecting pipe: PP-HT pipe according to DIN EN 1451 (minimum length 100 mm). No grouting or filling of the interspace required. Compatible with all TECEdrainline channels and covers.

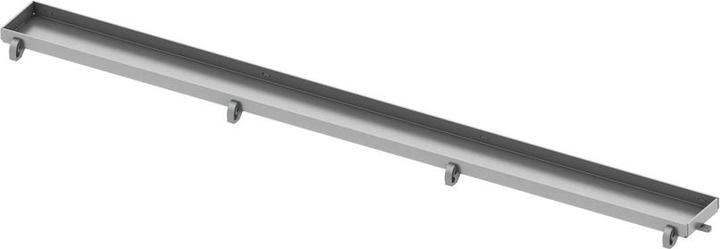

2. TECE Drainline tile trough "plate", stainless steel (900 mm)
Tile trough for TECEdrainline shower channel for insertion into the channel body, made of stainless steel, with polished visible edges. Loadable according to load class K3 with a test load of 300 kg for on-site bonding of tiles with elastic adhesive, such as silicone or epoxy resin glue. Caution: Check adhesive for tile compatibility. Design execution: "plate." Trough length: 900 mm, visible length: channel length L-45 mm.

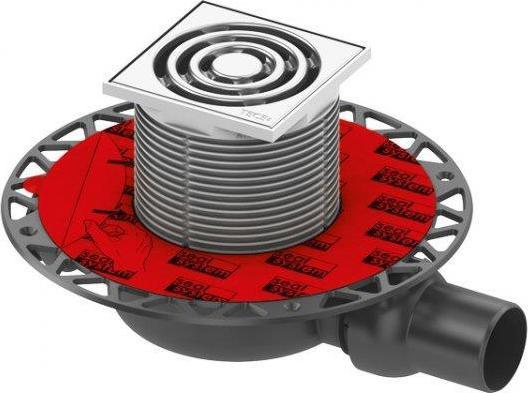

3. TECE Tecedrainpoint S Drain Set112 Supe Flat
The Tecedrainpoint S Drain Set112 Supe Flat is a high-quality drainage solution distinguished by its flat design. With a width of 265 millimetres and a length of 100 millimetres, this product offers an efficient way to drain water while ensuring an appealing appearance. Made from stainless steel (Nirosta), the drain set is characterised by its durability and corrosion resistance, making it ideal for use in various environments. The silver colour harmoniously integrates into modern designs, providing an elegant look. The freestanding mounting system allows for flexible installation that can be adapted to individual circumstances. Made in Germany, the Tecedrainpoint S Drain Set112 Supe Flat represents quality and precision. It is a practical and aesthetic solution for those who value functionality and design.

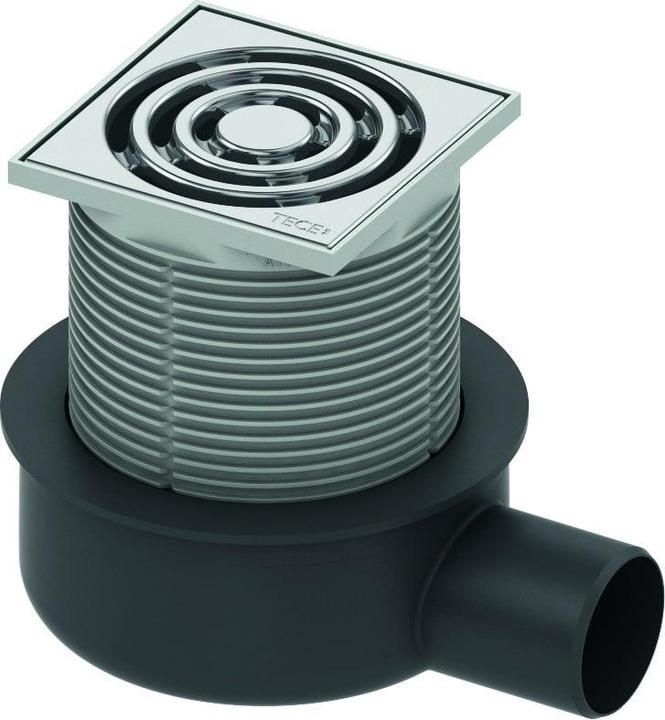

4. TECE Tecedrainpoint Draindn50 Withou Flange
The Tecedrainpoint Draindn50 shower channel from TECE is a high-quality solution for modern bathrooms. It is characterized by its elegant design and the use of stainless steel (Nirosta), which not only provides an appealing look but also ensures durability and corrosion resistance. With a width of 196 mm and a length of 270 mm, this shower channel fits perfectly into various shower areas and allows for efficient water drainage. The installation is freestanding, simplifying the setup and offering flexibility in bathroom design. Made in Germany, the Tecedrainpoint Draindn50 meets the highest quality standards and is a reliable choice for those who value functionality and aesthetics.
- Made from high-quality stainless steel (Nirosta) for durability and corrosion resistance
- Freestanding installation allows for flexible setup
- Elegant and modern design for contemporary bathrooms
- Made in Germany, meets high quality standards.

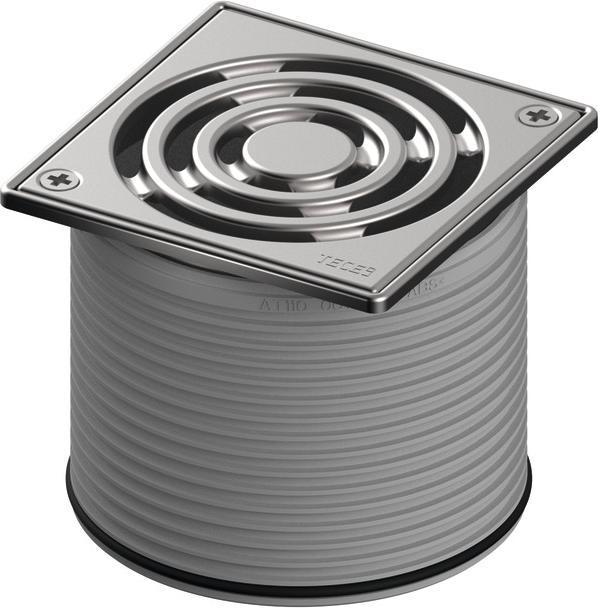

5. TECE TECEdrainpoint S stainless steel screw-in grate frame including design grate 100x100mm
Shower channels
EUR74,62
TECE TECEdrainpoint S stainless steel screw-in grate frame including design grate 100x100mm
100 mm
6. TECE Drainline basic body, straight with sealing sleeve (1000 mm)
Comprising a trough body made of stainless steel, material 1.4301 (304), with a contoured insulating flange for on-site bonding of the sealing material punched on one side. It allows for possible chamfering for installation near the wall. The water-impermeable sealing features a fleece surface for on-site incorporation in the insulating flange of the thin-bed sealing. It includes a connection bracket for anchoring in screed and for mounting optional mounting feet with a central connection piece for drain with an internal gradient to improve water runoff. Trough length: 1000 mm.
7. TECE Shower channel TECEdrainline straight, length = 900 mm, stainless steel
Shower channel TECEdrainline straight, length 900 mm, stainless steel
This straight channel body is designed for the TECEdrainline shower channel, suitable for installation in screed. It features an insulating flange and sealing collar for on-site sealing. TECEdrainline shower channels eliminate disruptive separations such as shower trays and cubicles, allowing for a uniform floor design. This creates barrier-free bathrooms with a spacious character, transforming them into real living spaces.
Consisting of:
- Channel body made of stainless steel
- Moulded insulating flange with waterproof special adhesive surface for bonding the sealing sleeve on site
- Sealing sleeve made of water-impermeable fleece, for incorporation into the insulating coating of the thin-bed waterproofing by the customer
- Connection bracket for anchoring in the screed and for mounting optional mounting feet
- Central connection pipe for drain
- Seals
- Overall length including insulating flange: 900 mm
- Visible length after installation: 855 mm
- Overall width including insulating flange: 155 mm
- Visible width after installation: 75 mm
- Overall height to OKFFB: 67/95/120/148 or 65 mm (depending on drain)
Please order separately:
- Designer grating or tile recess
- Drain
- Mounting feet (optional).
Shower channels
EUR248,04
TECE Shower channel TECEdrainline straight, length = 900 mm, stainless steel
900 mm
8. TECE TECEdrainprofile drain "vertical", DN 50, drainage capacity 1.2 l/s
TECEdrain profiles 1 x vertical drain
Product details:
Drain for TECEdrain profile shower profiles for installation in screed. Lateral connection to DN50 waste water pipe. Factory-fixed and clickable Seal System sealing sleeve. DIN 18534 compliant connection to the bonded waterproofing. Minimum installation height 47 mm (lower edge of drain to upper edge of screed). Drainage capacity ≥ 1.31/≥ 1.37 l/s (according to EN 1253 with 10/20 mm backwater above profile cover). Water trap height 50 mm. Odor trap removable. Integrated screed anchoring. Factory-fixed, clickable and flexible sealing sleeve with Seal System. Matching prefabricated sound insulation strip. Building protection cover. Sliding/movable seal for connection with TECEdrain profile shower profile and to compensate for construction tolerances.
Ordering information - please order separately: Wall and floor mounting brackets or mounting feet and sound insulation mat Drainbase (optional).
Shower channels
−23%
EUR169,– was EUR219,–
TECE TECEdrainprofile drain "vertical", DN 50, drainage capacity 1.2 l/s
432 mm

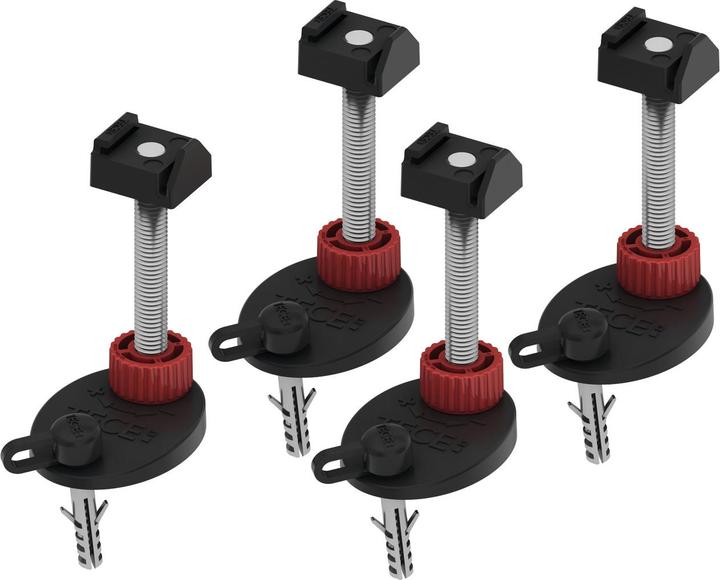

9. TECE TECEdrainline mounting feet norm 92-139mm, 4 pieces
The TECEdrainline mounting feet are a practical solution for installing shower drains. They offer an adjustable range of 92 to 139 mm, allowing for flexible adaptation to different installation conditions. These mounting feet are available in a set of four and include both soundproofing elements and the necessary fastening materials. The use of plastic as a material ensures a durable and reliable application. The mounting feet are freestanding and provide easy handling during installation. They are ideal for use in modern bathrooms, where both functionality and aesthetics are important.
- Adjustable range of 92 to 139 mm for flexible adaptation
- Includes soundproofing elements for noise reduction
- Set contains four mounting feet with fastening materials.
Shower channels
−12%
EUR26,36 was EUR29,80
TECE TECEdrainline mounting feet norm 92-139mm, 4 pieces
210 mm

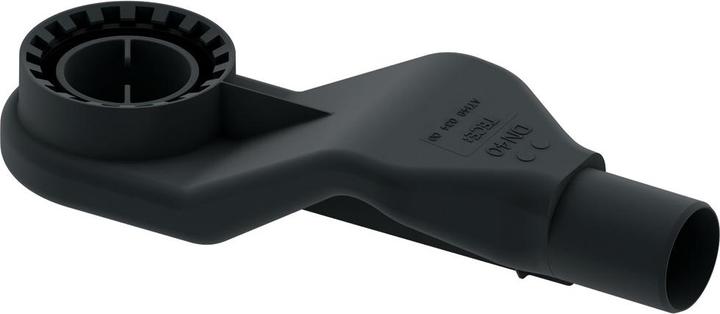

10. TECE Drain TECEdrainline DN 40, superfl., lateral outlet 0.5 l/s
Super flat drain for TECEdrainline shower channel for swivel mounting on the channel body, for lateral connection to DN 40 wastewater pipe, with removable siphon dip tube. The installation height from the bottom edge of the drain to the top edge of the shower channel is 67 mm, and the reduced backwater height is 30 mm (20 mm without dip tube). The drainage capacity according to DIN EN 1253 at 10 mm/20 mm backwater over the grate is: Design grate basic: 0.5 l/s, 0.6 l/s - drainage capacity with tile trough plate/plate II: 0.5 l/s, 0.6 l/s.
Installation note according to § 13 NAV.
Please note that devices with a connection value of 230V are delivered either with a protective contact plug or a fixed connection (without plug) depending on the power rating. If the device has a fixed connection, a qualified technician must be commissioned for the installation. All devices with a connection value of 400V and above must be operated via a suitable high-voltage connection and may only be connected by a qualified electrician. For devices with a rated power of more than 12 kW, approval from your network operator is required. Please contact the network operator or an installation company registered in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.
