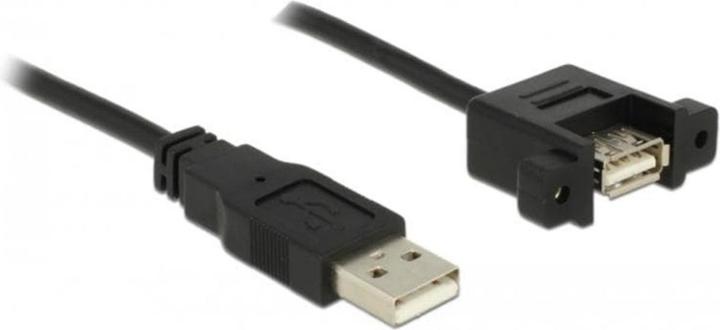

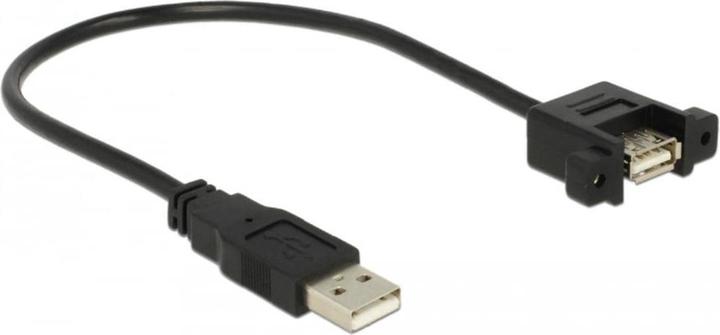

This cable from Delock can be used to extend a USB connection and to connect various devices. The socket can be secured with two screws, for example, to a slot bracket, a cable duct, or a housing with the appropriate cutout. This allows for the installation of a USB socket in an easily accessible position.

Specifications:

• Connectors:

1 x USB 2.0 Type-A plug
1 x USB 2.0 Type-A socket with nuts for installation

• Screw type: #4-40 UNC
• Installation opening: approx. 15 x 8 mm, drilling approx. 30 mm hole spacing
• Wire gauge:

28 AWG data line
24 AWG power line

• Cable diameter: approx. 4.5 mm
• Contacts with gold plating
• Data transfer rate up to 480 Mb/s
• Color: black
• Length including connectors: approx. 0.25 m

System requirements:

• An available USB interface

Package contents:

• USB installation cable
• 2 screws.
