Power relay

Price in EUR including VAT
Ratings
BrandMore from Zettler
Delivered between Fri, 12.9. and Tue, 16.9.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

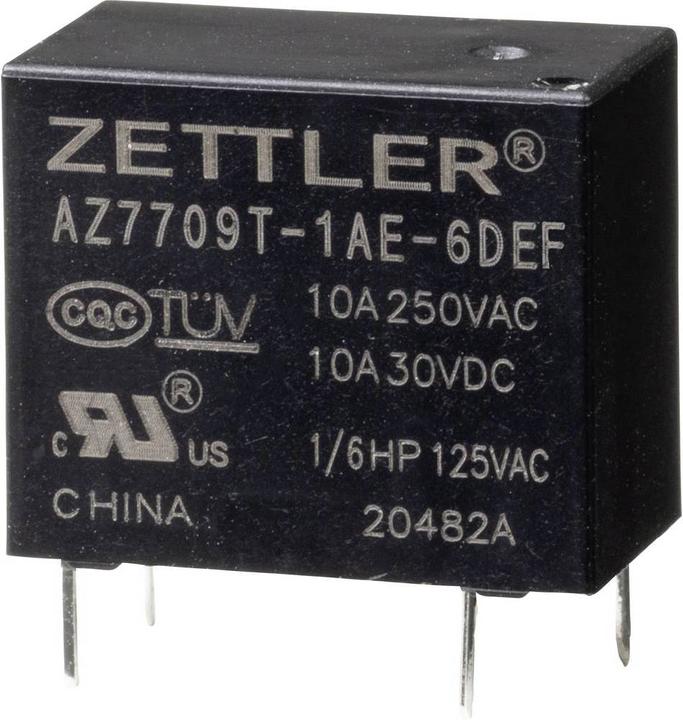

The Zettler power relay, model AZ7709T-1AE-6DEF, is a high-quality power relay designed for various applications in electrical engineering. With a nominal voltage of 6 V/DC and a maximum switching current of 10 A, this relay offers reliable performance in demanding environments. It is monostable and has a pick-up voltage ranging from 4.2 V/DC to 7.8 V/DC. The isolation voltage of 500 V/AC ensures safe usage, while the contact material made of silver-tin oxide (AgSnO) promises a long lifespan and stability. The relay is suitable for temperatures from -40 °C to 85 °C and complies with RoHS regulations, making it an environmentally friendly choice.

  • Monostable operation with a pick-up voltage of 4.2 V/DC to 7.8 V/DC
  • Maximum switching power of 300 W and 2500 VA
  • Isolation voltage of 500 V/AC for enhanced safety
  • Temperature range from -40 °C to 85 °C for versatile applications
  • RoHS compliant, environmentally friendly materials.

Key specifications

input voltage
7.80 V
Scope of delivery
1 pc.
Output voltage
6 V
Electric current output
10 A
Relay type
Power contactor
Item number
21609344

General information

Publisher
Zettler
Category
Relays
Manufacturer no.
2349914
Release date
3.8.2022

Relay properties

Relay type
Power contactor
input voltage
7.80 V
Output voltage
6 V
Electric current output
10 A
Resistor
80 Ω (ohm)
Max. Switching capacity
2.50 kW
Manufacturer Type
AZ7709T-1AE-6DEF

Smart home features

Smart Home
Not compatible

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
18.40 mm
Width
10.20 mm
Height
15.50 mm
