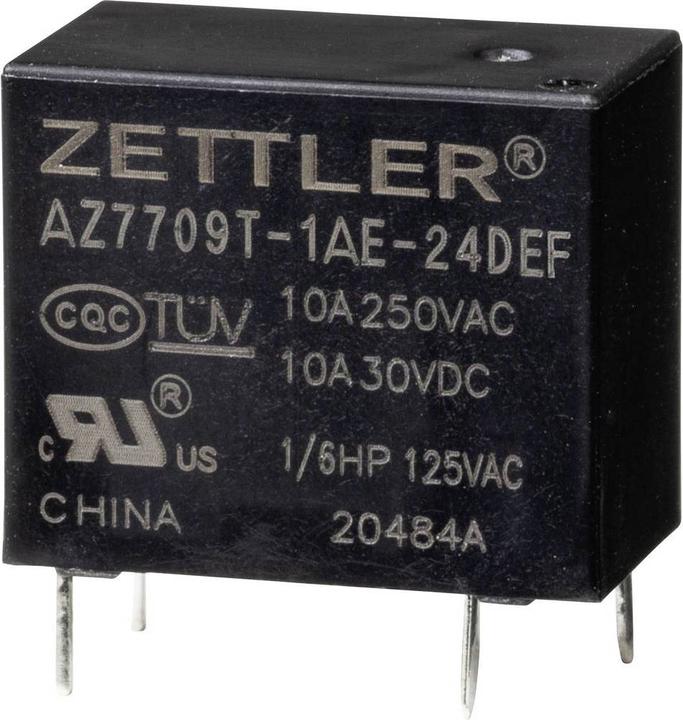

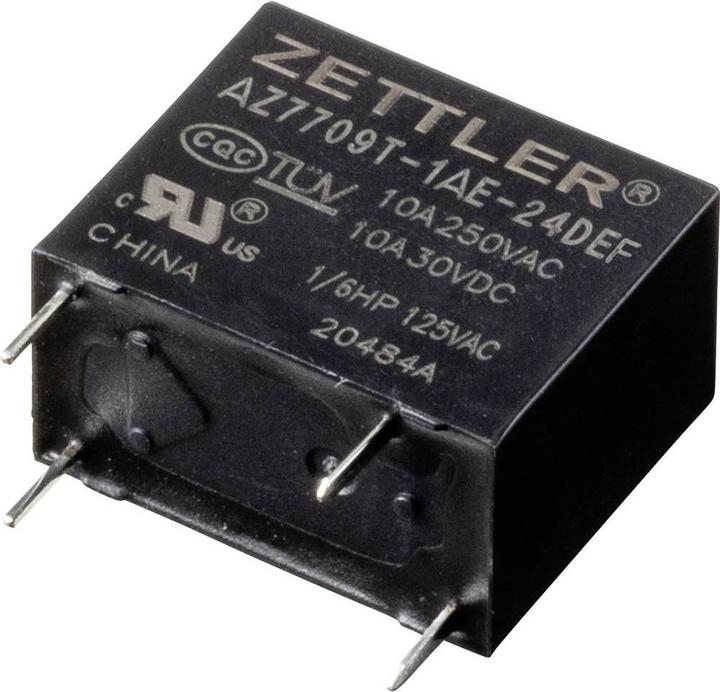

The Zettler power relay, model AZ7709T-1AE-24DEF, is a high-quality power relay designed for various applications in electrical engineering. With a rated voltage of 24 V/DC and a maximum switching power of up to 2500 W, this relay provides a reliable solution for controlling electrical loads. It is monostable and features a coil activation type that requires a pick-up voltage between 16.8 V/DC and 31.2 V/DC. The relay is suitable for use in a wide temperature range of -40 °C to 85 °C and complies with RoHS guidelines, making it an environmentally friendly choice. Its compact design, with dimensions of 10.2 mm in width, 15.5 mm in height, and 18.4 mm in length, allows for easy integration into various circuits. The Zettler power relay is ideal for applications that require precise control and high reliability.

• Maximum switching power of 2500 W
• Pick-up voltage between 16.8 V/DC and 31.2 V/DC
• Operating temperature range of -40 °C to 85 °C
• RoHS compliant for environmentally friendly use
• Monostable with a coil for easy activation.
