Power relay

Price in EUR including VAT
Ratings
BrandMore from Zettler
Delivered between Fri, 12.9. and Tue, 16.9.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

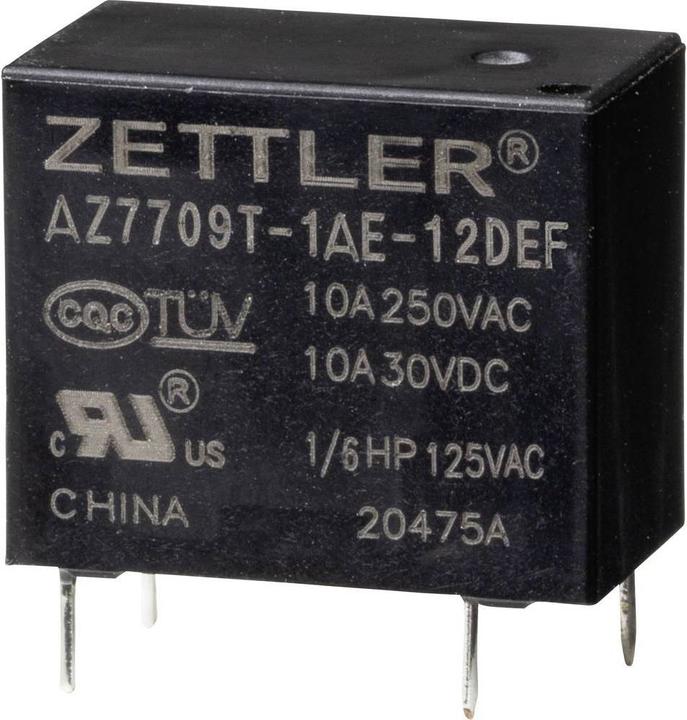

The Zettler power relay, model AZ7709T-1AE-12DEF, is a high-quality power relay designed for various applications in electrical engineering. With a rated voltage of 12 V/DC and a maximum switching current of 10 A, this relay provides reliable performance for demanding switching operations. It is monostable and has a pickup voltage ranging from 8.4 V/DC to 15.6 V/DC, allowing for flexible integration into different systems. The isolation voltage of 500 V ensures additional safety and reliability during operation. The relay is designed for temperatures from -40 °C to 85 °C, making it suitable for use in various environments. With a compact design and robust construction, this power relay is an excellent choice for professional applications.

  • Monostable operation with a single coil control
  • Maximum switching power of 300 W and 2500 VA
  • Durable contact material made of AgSnO for high reliability
  • Temperature range of -40 °C to 85 °C for versatile applications
  • RoHS compliant, ensuring environmentally friendly materials.

Key specifications

input voltage
15.60 V
Scope of delivery
1 pc.
Output voltage
12 V
Electric current output
10 A
Relay type
Power contactor
Item number
21609345

General information

Publisher
Zettler
Category
Relays
Manufacturer no.
2349915
Release date
3.8.2022

Relay properties

Relay type
Power contactor
input voltage
15.60 V
Output voltage
12 V
Electric current output
10 A
Resistor
320 Ω (ohm)
Max. Switching capacity
0.30 kW
Manufacturer Type
AZ7709T-1AE-12DEF

Smart home features

Smart Home
Not compatible

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
18.40 mm
Width
10.20 mm
Height
15.50 mm
