Best Exsys products in the Docking stations + USB hubs category

On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Exsys EX-1134-2

With the EX-1134-2, you can expand a USB 3.2 Gen 1 output from a notebook or desktop computer to four additional USB 3.2 Gen 1 ports. This allows you to connect up to four external USB 2.0 or 3.2 Gen 1 peripherals to a USB 2.0 or 3.2 Gen 1 port on notebooks or desktop computers. It is very compact and elegant, and all four USB ports are always accessible. The EX-1134-2 comes with an adapter from USB-C to USB-A (EX-47991) so it can also be connected to a computer with a USB-A port. The USB 3.2 Gen 1 cable is 30 cm long. The EX-1134-2 does not support larger external peripherals, such as external hard drives, without a power supply. The power supply (EX-6993) is available separately.

2. Exsys USB 2.0 HUB 7-Port 1xUSB-B,7xUSB-A,1xDC socket

3. Exsys Ex-1110hmvs

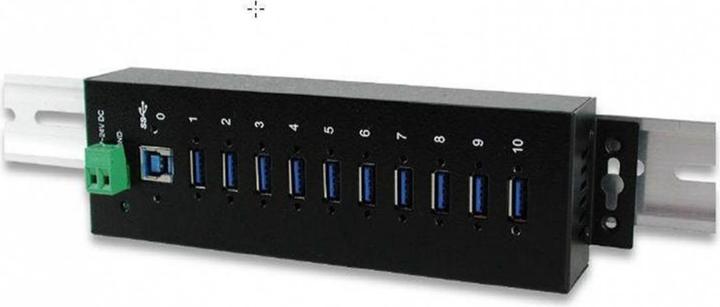

The EX-1110HMVS provides 10 screwable USB 3.0/3.1 (Gen1) downstream ports with 15 kV ESD overvoltage protection. This allows for the connection of up to ten external USB peripheral devices to a USB 3.0/3.1 (Gen1) port from the computer in a 19" rack.

The included USB cable with A-plug to B-plug can be attached to the EX-1110HMVS using thumb screws without the need for a screwdriver. It can be used in automation and office applications. The hub meets the specific requirements of industrial applications.

4. Exsys GmbH 6 Port USB 2.0 Managed HUB, incl. Din-Rail

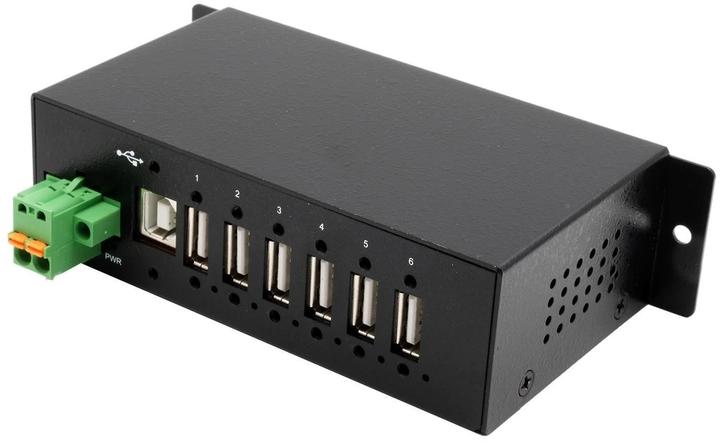

The EX-1596HMVS is a managed USB 2.0 hub designed to provide extensive and unique features for industrial applications. It offers immediate expansion with six screwable USB 2.0 ports and is compatible with all existing USB 2.0 and USB 1.1 devices.

Management Software:
The EX-1596HMVS comes with management software that allows you to turn the USB bus power on and off for each individual port or reset the entire USB hub to factory settings. The EX-1596HMVS has flash memory where the desired startup state can be stored. Upon the next power-up, the last settings will be used. Various utilities and management software tools for operating systems such as Windows, Intel x86-64, ARM-based Linux, and Mac are included. The utilities have been written to work with application software programmed in various languages such as C#, C++, VB, Python, or even PHP.

USB 2.0 Metal Hub with six downstream USB ports
Supports software utilities for Windows and Linux
15KV ESD surge protection for each output
Power supply from +7V to +48V DC via terminal block
Easy installation with integrated DIN rail mounting
Compact industrial design
Automatic detection of data transfer rate for connected peripherals
500mA maximum current on all 6 ports with self-power (power supply)
Automatic detection of input polarity at the power terminal block
Robust metal housing
1x LED voltage indicator and 6x LED active indicators
Chipset: Genesys GL852GT

Internal jumper for individual power control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (self-power)

Package contents:
EX-1596HMVS, USB 2.0 cable, DIN rail kit, driver CD, manual.

5. Exsys USB 3.2 HUB 7-Port Gen1 White HUB

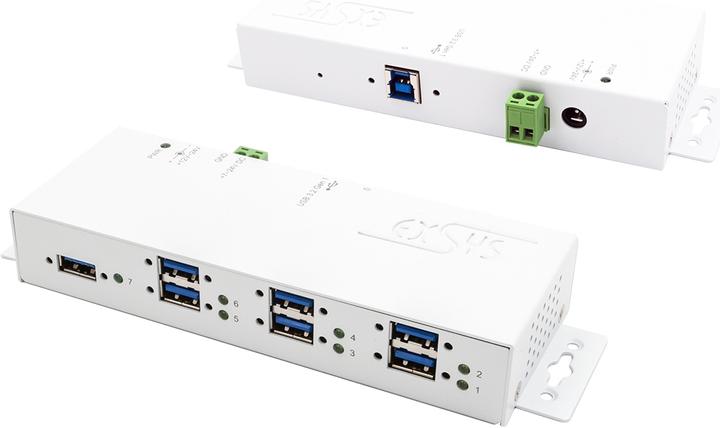

The EX-1189HMVS-3W provides 7 screwable USB 3.2 Gen 1 (formerly USB 3.0) downstream ports with 15KV ESD surge protection for each output. It simultaneously supplies up to 1.5A of power for charging iPhones, iPads, smartphones, and tablets on up to 4 ports. The included EX-K1571V cable can be attached to the EX-1189HMVS-3W using thumb screws without a screwdriver. It can be used in automation, industrial, and office applications. Thanks to its special housing, the EX-1189HMVS-3W can be mounted on a wall, under a table, or in a 19" rack (optionally with EX-6099).

USB 3.2 Gen 1 Metal HUB with 7 Ports
15KV ESD surge protection for all 7 ports
Power supply 12V/3A with DC jack or +7V to +24V with terminal block
Power supply also optionally from USB bus +5V (Bus-Power)
Automatic detection of data transfer rates for connected peripherals
Simultaneously supports 1.5A power on a maximum of 4 ports
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Robust metal housing
7x LED USB operation indicators
1x LED voltage indicator

Internal jumper for individual power supply control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (Self Power)

Scope of delivery:
EX-1189HMVS-3W, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.

6. Exsys EX-1113HMS, 16xUSB 3.0/3.1 Metal HUB

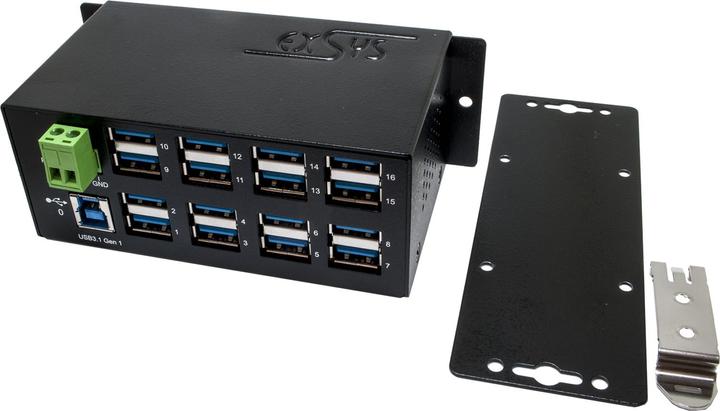

The Exsys EX-1112HMS uses a USB connection from your computer to provide 16 downstream ports in a Type-A form factor. According to the USB 3.0 standard (3.1 Gen. 1), it supports transfer rates of up to 5 Gbps. With its metal housing, 15 kV ESD protection at each port, and the included DIN rail mount option for installation in a 19" rack, it meets the specific requirements of industrial applications. Power can be supplied either via bus power or through a terminal block.

7. Exsys EX-1163HMS-WT

The EX-1163HMS-WT provides 4 USB 2.0 downstream ports, each with 15 kV surge protection. This allows for the connection of up to four external USB peripherals to a USB 2.0 port from the computer in a 19" rack. It can be used in automation and office applications and meets the specific requirements of industrial applications. The HUB is very compact and robust, supporting temperatures from -40 °C to +85 °C.

USB 2.0 HUB with 15 kV ESD surge protection for all 4 ports
Protection of connected devices against voltage fluctuations
Supports an extended temperature range of -40 °C to +85 °C
Power supply from +7 V to +48 V DC via terminal block
Easy installation with integrated DIN rail mounting bracket
Compact industrial design with additional side heat sinks
LED status indicator for each individual port
Power supply optionally also from the USB bus with +5 V (Bus-Power)
Chipset: Genesys

Internal jumper for individual power supply control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (Self Power)

Included in delivery:
EX-1163HMS-WT, USB 2.0 cable 2.0 m, DIN rail kit, manual.

8. Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable

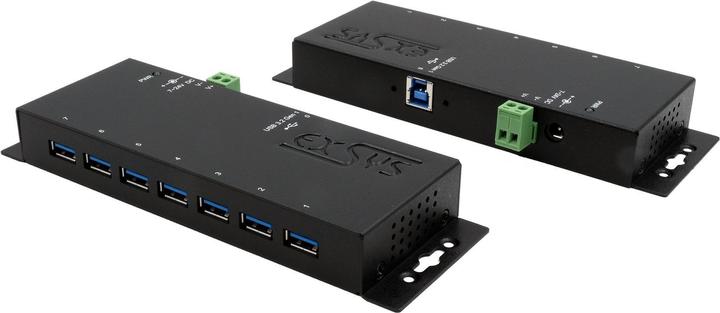

The EX-1188HMS-3 provides 7 USB 3.2 Gen 1 (formerly known as USB 3.0) downstream ports with 15 kV ESD overvoltage protection for each output. It is possible to connect up to seven external USB peripherals to a USB 3.2 Gen 1 port from a notebook, desktop computer, or server in a 19" rack. It can be used in automation, industry, and office applications. Thanks to its special housing, the EX-1188HMS-3 can be mounted on the wall, under a table, or in a 19" cabinet (optionally with EX-6099).

USB 3.2 Gen 1 hub with seven downstream ports
15 kV ESD overvoltage protection for each output
Power supply +7V to +24V DC via terminal block or DC socket
Power supply optionally also from USB bus +5V (bus-powered)
Automatic detection of data transfer rate for connected peripherals
Metal housing for wall, table, or optionally on mounting rail (EX-6099)
900 mA power on all 4 ports
Robust metal housing
1x LED voltage indicator

Two jumpers for individual control of operating mode (data and power):
Bus Power Jumper:
ENA = Bus power operation possible
DIS = Operation only possible with power supply (self-powered)
Host Control Jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is turned on

Delivery includes:
EX-1188HMS-3, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.

Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable (USB-B, 7 Ports)
Docking stations + USB hubs
−8%
EUR124,73 was EUR135,64

Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable

USB-B, 7 Ports

9. Exsys 2 Port USB 3.2 Gen1 Extender with fibre optic cable up to 300 metres

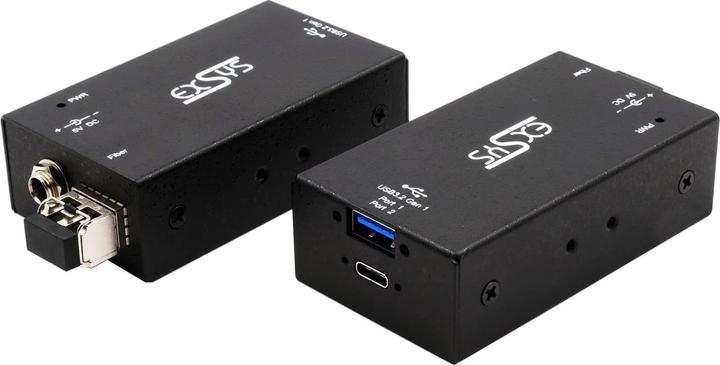

The 2-Port USB 3.2 Gen1 Extender with fiber optic cable from Exsys is a highly advanced solution for extending USB signals over long distances. With a range of up to 300 meters, or even up to 10 km when using single-mode transceivers, this device enables a reliable connection for various applications that depend on high data transfer rates. The extender consists of a local host unit that connects directly to a PC and a remote 2-Port SuperSpeed hub that offers both USB-A and USB-C ports. This flexibility makes it ideal for use with cameras, storage devices, and other USB peripherals. The device comes with a DIN-rail kit and a wall mount, allowing for versatile installation in different environments. Additionally, the extender features a 15KV ESD surge protection to safeguard connected devices and ensure stable performance.

- Supports USB 3.2 Gen 1 with a maximum transfer speed of 5000 Mbit/s
- Provides both USB-A and USB-C ports for versatile usage
- Includes wall mount and DIN-rail kit for flexible installation options
- Surge protection with 15KV ESD protection for enhanced safety
- Allows the use of fiber optic cables for a range of up to 300 meters.

10. Exsys USB hub EX-1185HMVS-2

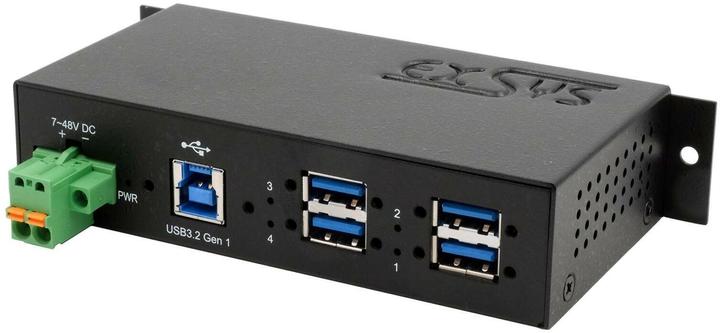

The robust, industrial-grade EX-1185HMVS-2 USB hub features four screwable USB 3.2 Gen 1 (formerly USB 3.0) ports and 15KV ESD surge protection. It can be installed on a wall or on a mounting rail. The hub connects to a computer or server using the included USB 3.2 Gen 1 cable. The EX-1185HMVS-2 supports data transfer rates of up to 5 Gbit/s and is backward compatible with USB 1.1. It can be powered via USB bus power (7-48V) or through a two-wire terminal block.

- USB 3.2 Gen 1 metal hub with four downstream ports
- 15KV ESD surge protection for each port
- Power supply 7V to 48V DC via terminal block
- Optional power supply from USB bus 5V (bus power)
- Easy installation with integrated DIN rail mounting bracket
- Automatic detection of data transfer rates for connected peripherals
- 900mA power on all 4 ports
- Automatic detection of input polarity at the power terminal block
- Compact industrial design
- Robust metal housing
- LED voltage indicator
- Chipset: Genesys GL3523

Internal jumper for individual power control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (self-powered)

Package contents:
EX-1185HMVS-2, USB 3.2 Gen 1 cable, DIN rail kit, manual.
