Hager Circuit breaker pole
More than 10 pieces in stock at supplier
rated current2
Product details

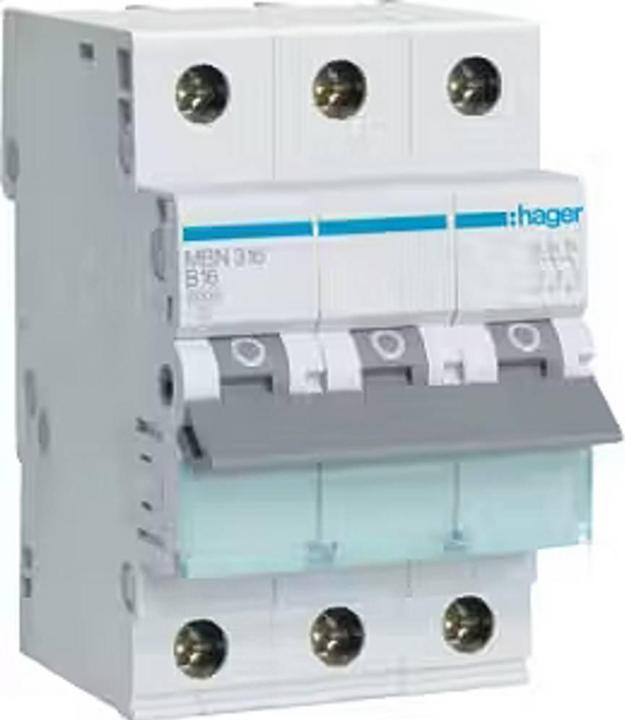

Hager Circuit Breaker MBN316
Manufacturer: Hager
Designation: 3-pole Circuit Breaker B-16A, 6kA
Type: MBN316
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Type of Voltage: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50..60 Hz
Power Loss: 6.33 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..70 °C
Connectable Conductor Cross-Section Multistranded: 1..25 mm²
Connectable Conductor Cross-Section Solid: 1..35 mm²
Explosion-Proof: no
Hager Circuit Breaker MBN316: additional details
3-pole Circuit Breaker 6kA B-Characteristic 16A 3 Modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail assembly by unlocking the DIN rail quick fastening.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 80 mm |
number of poles | 3 |
Mounting type | Top-hat rail |
Item number | 8784365 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | MBN316 |
Release date | 25.5.2018 |
External links |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | B |
Rated current | 16 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 1000 A |
Protection type (IP code) | IPX2 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 80 mm |
Height | 230 mm |
Weight | 280 g |
Length | 8.80 cm |
Width | 6.90 cm |
Height | 5.30 cm |
Weight | 269 g |
