Hager pole circuit breaker
More than 10 pieces in stock at supplier
Protection type (IP code)2
rated current2
Residual current (rated differential current)2
Product details

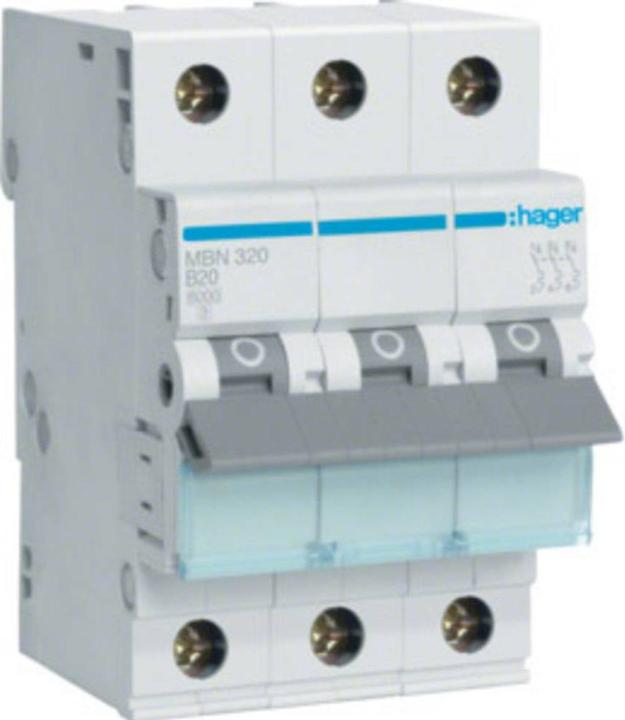

The Hager MBN320 circuit breaker is a reliable and safe device designed for use in electrical installations. With a B characteristic and a rated current of 20 Amperes, this three-pole switch provides effective protection against overloads and short circuits. The switch meets the requirements of the standard DIN EN 60898-1 and offers touch protection according to IP2x, making it a safe choice for various applications. The MBN320 is suitable for mounting on a DIN rail, allowing for easy installation and the option to add additional devices later. The labeling option directly on the device and the individual removal from the phase rail connection by unlocking the DIN rail quick fastening enhance user-friendliness and flexibility in application.
- Three-pole circuit breaker with 6kA short-circuit protection
- Built-in thermal and electromagnetic release
- Suitable for retrofitting additional devices
- Easy mounting on DIN rail with quick fastening
- Touch protection according to IP2x for increased safety.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 80 mm |
number of poles | 3 |
Mounting type | Top-hat rail |
Item number | 8782848 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | MBN320 |
Release date | 25.5.2018 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | B |
Rated current | 20 A |
Rated voltage | 400 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 10000 A |
Protection type (IP code) | IPX2 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 80 mm |
Height | 230 mm |
Weight | 310 g |
