Janitza JANI Power Quality Analyser
Only 2 pieces in stock at supplier
Protection type (IP code)3
Product details

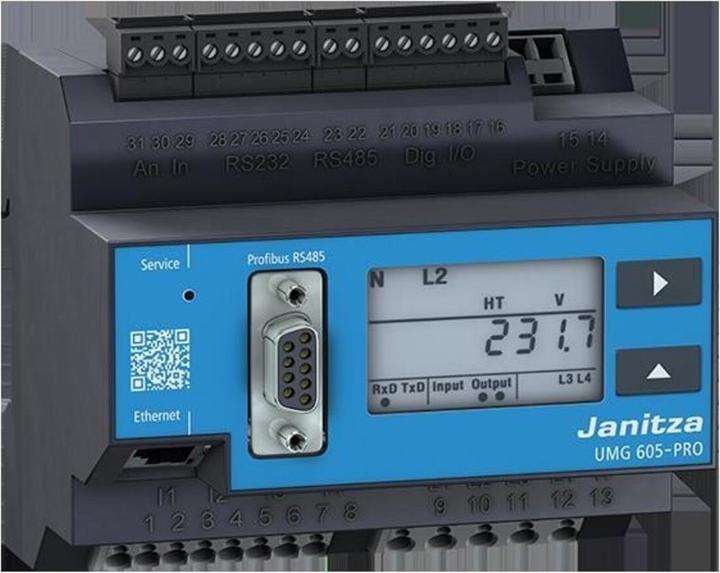

Janitza Electronic Power Analyser UL UMG 605-PRO 230V
Manufacturer: Janitza Electronic
Designation: Power analyser UL
Type: UMG 605-PRO 230V
Display: Digital
Number of voltage input channels: 4
Number of current input channels: 4
Current measurement: Direct current measurement
Harmonic measurement: Yes
Power factor: Yes
Active power: Yes
Reactive power: Yes
Apparent power: Yes
Phase angle (cos phi): Yes
Power/work: Yes
Interface: Yes
Measured value memory: Yes
Power supply: Mains operation
Voltage measuring range/AC direct: 95-240 V
Power Quality Analyser UL UMG 605-PRO 230V:
Supply voltage: 95-240V (45-65Hz), 135-340V DC
Measuring category: 300V CAT III
Voltage measuring inputs: 4
Current measuring inputs: 4
Measuring range:
- L - N: 10-300V
- L - L: 17-520V
Frequency: 15-440Hz
Current transformer: ../1, ../5A
Digital inputs: 2
Digital outputs: 2
Temperature measuring input: 1
Additional memory: 128MB Flash
Interfaces: RS232, RS485, Profibus DP V0, Ethernet 10/100 BaseTX
Included Web server and the following apps:
- APP Measured value monitor: Graphic display of online & historical measured values
- APP EN 50160 Watchdog PRO: Monitoring of the power quality limits according to EN 50160
- APP IEC 61000-2-4 Watchdog PRO: Monitoring of the power quality limits according to IEC 61000-2-4
Included in delivery:
- Art.no.: 0801505, Cross patch cable, CAT5e, 2m
- Art.no.: 5200008, RS485 terminating resistor 120 Ohm
- Art.no.: 3303337 Quick start UMG 605 including safety instructions and software GridVis
- Quick start UMG 605, EAN: 4251861100231.
Energy meter type | Multifunction measuring device |
Mounting type | Top-hat rail |
Maximum current | 6 A |
Item number | 34273583 |
Manufacturer | Janitza |
Category | Energy monitors |
Manufacturer No. | 5216227 |
Release date | 17.5.2023 |
Colour | Grey |
Energy meter type | Multifunction measuring device |
Mounting type | Top-hat rail |
Maximum current | 6 A |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 0,56 kg |
Climate contribution | EUR 0,12 |
Height | 90 mm |
Length | 170 mm |
Width | 107.50 mm |
Weight | 680 g |
Product Safety |
Length | 18.40 cm |
Width | 17.30 cm |
Height | 13.90 cm |
Weight | 561 g |
