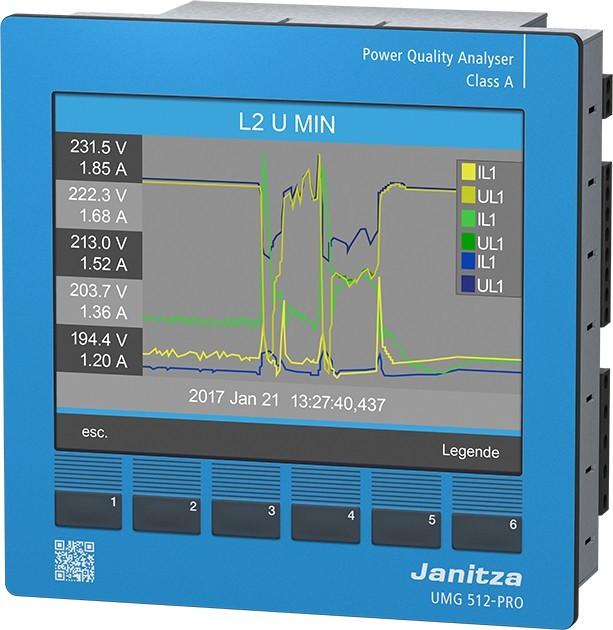

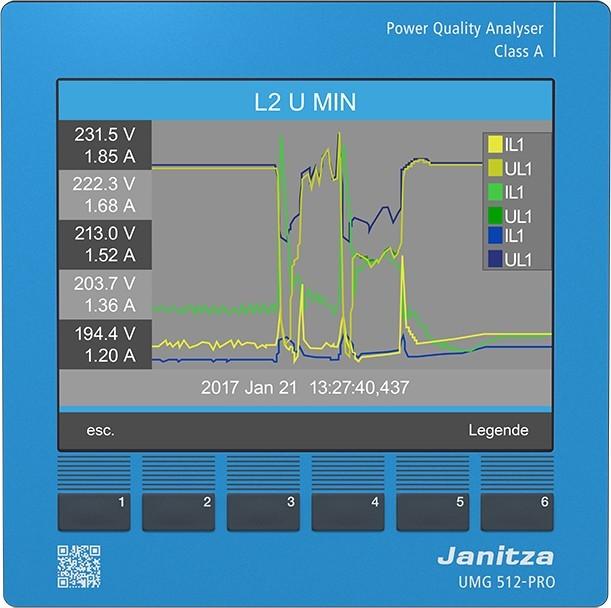

Janitza JANI Power Quality Analyser
Only 2 pieces in stock at supplier
Nominal voltage3
Product details
Janitza Electronic Power Quality Analyser UMG 512 #5217011
Manufacturer: Janitza Electronic
Designation: Power quality analyser
Supply voltage: 95V-240V AC (UL)
Type: UMG 512 #5217011
Display: Graphical
Number of voltage input channels: 4
Number of current input channels: 4
Current measurement: Direct current measurement
Harmonic measurement: Yes
Power factor: Yes
Active power: Yes
Reactive power: Yes
Apparent power: Yes
Phase angle (cos phi): Yes
Power/work: Yes
Interface: Yes
Measured value memory: Yes
Power supply: Mains operation
Class A UMG 512 #5217011: More details
Class A (IEC 61000-4-30) Power quality analyser with RCMSupply voltage: 95 - 240V (50/60Hz) 80 - 300V DC
Installation category: 300V CAT III
4 voltage measurement inputs, Measurement category: 600V CAT III
Measurement in three-phase 4-conductor systems up to 417V/720V, Measurement in three-phase 3-conductor systems up to 600V
4 current measurement inputs for current transformers 1A or 5A
Current measuring range: 0.001 ... 7A rms
2 digital inputs, 2 digital outputs
1 temperature input, 2 RCM inputs
Data memory: 256MB Flash
Interfaces: RS485, Profibus DP V0, Ethernet 10/100 Base TX
Included web server and the following apps:
- APP Measured value monitor: Graphical display of online & historical measured values
- APP EN 50160 Watchdog PRO: Monitoring of power quality limit values in accordance with EN 50160
- APP IEC 61000-2-4 Watchdog PRO: Monitoring of power quality limit values in accordance with IEC 61000-2-4
Programming software: GridVis Basic
Included in the scope of delivery:
- Item no.: 5219301, 2 mounting clips
- Order no.: 0801505, cross-patch cable, CAT5e, 2m, grey/green
- Order no.: 3303336 Quick start UMG 512 including safety instructions and GridVis quick start software
- EAN: 4251861100262.
measurement module | Amp, Volts, Watt |
Maximum current | 7 A |
Nominal voltage | 240 V |
Item number | 34273586 |
Manufacturer | Janitza |
Category | Energy monitors |
Manufacturer no. | 5217011 |
Release date | 17.5.2023 |
External links |
Colour | Grey |
Exact colour description | Grey (metallic) |
Functionalities | Data loggers |
measurement module | Amp, Volts, Watt |
Maximum current | 7 A |
Nominal voltage | 240 V |
Accuracy class | A |
Country of origin | Germany |
CO₂ emissions | 0,25 kg |
Climate contribution | EUR 0,12 |
Weight | 1340 g |
