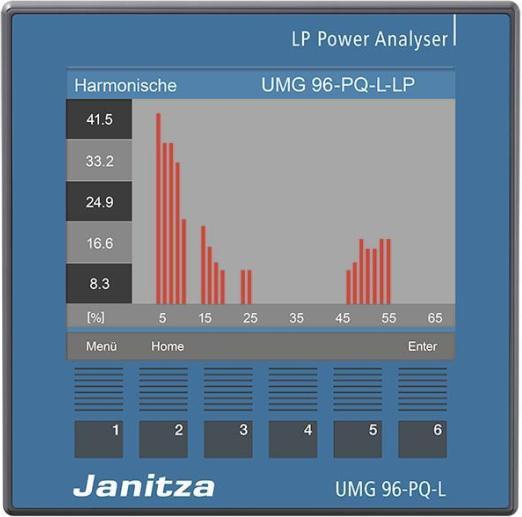

The JANI Voltage Quality Analyzer, also known as UMG 96-PQ-L-LP, is a highly advanced energy measuring device specifically designed for analyzing voltage quality in electrical networks. With a compact design of 96 x 96 x 86 mm, this panel-mounted device is ideal for integration into various applications. It supports a wide supply voltage range of 90 V to 277 V (50/60 Hz) as well as 90 V to 250 V DC, making it suitable for measurement in TN and TT networks. The integrated data storage with 64 MB allows for the capture and storage of measurement data, while the clock and battery ensure continuous monitoring. The analyzer offers comprehensive measurement capabilities, including the capture of harmonics up to the 65th and active power with an accuracy of class 0.5S. Its versatile connection options and support for Modbus RTU over RS485 make it a flexible tool for modern energy data analysis.

• Measurement of harmonics up to the 65th
• 3 voltage measurement inputs with measurement category 600 V CAT III/300 V CAT IV
• 4 low-power current measurement channels for precise measurements
• Integrated data storage with 64 MB for extensive data storage
• Compatible with Modbus RTU for easy integration into existing systems.
