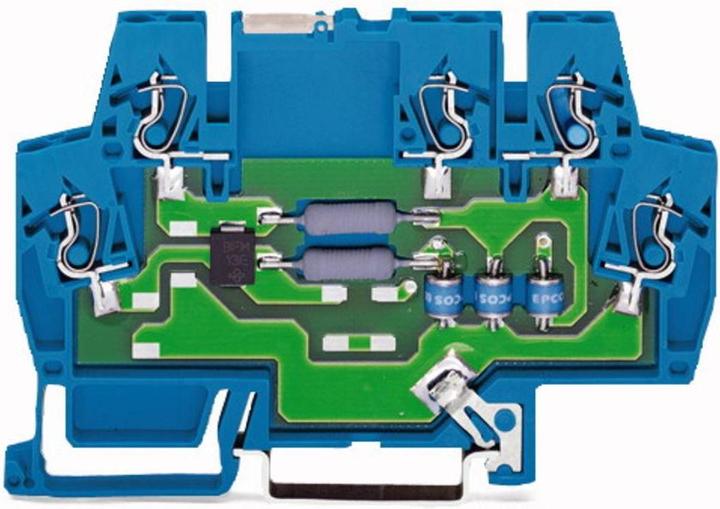

Surge protection module for signal technology
Nominal voltage DC 24 V
For 2 signal paths with common grounding
For symmetrical interfaces
2-stage
For the protection of intrinsically safe circuits
Width 6 mm
2.50 mm²

Short description:
Surge protection devices for information technology systems and equipment in the voltage range up to 60 V (excluding special solutions, e.g., telephone systems with ringing voltage). Surge protection is also possible in the terminal block for a 35 mm mounting rail. Only 6 mm wide, multi-stage surge protectors in terminal block form of the series 792-80x provide space-saving, cost-effective protection for control and bus technology, such as LON networks, PROFIBUS networks, binary signals, etc.

Features:
Protection of your system against overvoltage.
Space-saving due to narrow design.
Cost savings by preventing downtime.
High operational reliability and system availability.
