Best selling Timers from Hager
On this page you’ll find a ranking of the best Timers from Hager. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

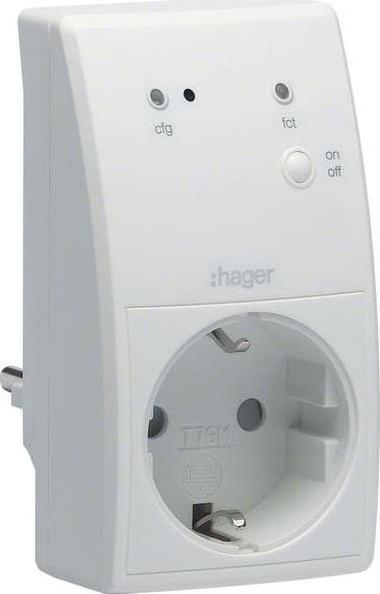

1. Hager Radio
Hager Radio Adapter Plug Actuator TRC270D
Manufacturer: Hager
Designation: Radio Adapter Plug Actuator 16A, Quicklink
Type: TRC270D
KNX Bus System: No
KNX Radio Bus System: Yes
Radio Bus System: Yes
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Bidirectional Radio: Yes
Mounting Type: Other
Local/Manual Operation: Yes
With LED Display: Yes
Max. Switching Power: 3680 W
Output Power: 3680 W
Suitable for C-Load: Yes
Max. Number of Switching Outputs: 1
Number of Switching Outputs: 1
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 195-253 V
Connectable to Different Phases: No
With Bus Coupling: No
Bus Module Removable: No
Min. Installation Depth of Device Box: 40 mm
Modular Expansion Option: No
Protection Class (IP): IP30
Additional Details: Radio adapter plug actuator 16A, Quicklink. Flush-mounted output device as an intermediate plug for switching loads in conjunction with Quicklink radio products. Tool-free Quicklink configuration via buttons with LED display or integration via KNX radio media coupler into the KNX-TP system. The device converts switching information into bidirectional commands. Functions include manual override, on/off, switching, scenes, timer, and normally open pushbutton.
2. Hager Weekly timer
The Hager weekly timer TXA022 is a digital timer designed for indoor use. It allows for precise control of electrical devices through a weekly program. With app control, users can conveniently operate the timer from their smartphones, enabling flexible adjustment of switching times. The weekly timer is equipped with two channels and offers a total of 56 programs, allowing for individual customization to meet various needs. The Hager TXA022 is also compatible with smart home systems and requires a smart home hub for full functionality. With its compact design and IP20 protection rating, it is ideal for use in living spaces.
- App control for flexible use
- Weekly program with 56 adjustable programs
- Compatible with smart home systems
- Two channels for versatile applications
- International protection rating IP20 for indoor use.
3. Hager Schaltuhr
The Hager EHN010 time switch from Hager is an electromechanical time switch designed for the precise control of electrical devices in a daily programme. It enables simple programming and offers a reliable solution for the automation of lighting and other electrical applications. With a rated voltage of 230 volts and a maximum current of 16 amps, this timer is suitable for a wide range of residential and commercial applications. It is easy to mount on a top-hat rail, which facilitates installation in existing electrical systems. The Hager time switch is not compatible with smart home systems, but offers user-friendly analogue control for everyday applications. Its compact design and IP20 protection rating make it a practical choice for indoor use. Mechanical timer with daily programme. Shortest switching intervals of 5 minutes. Simple mounting on top-hat rail. Maximum current of 16 amps.

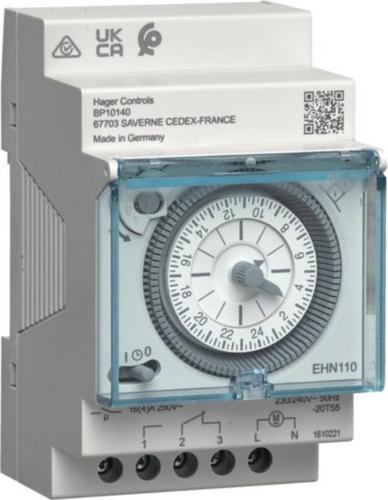

4. Hager HAGE time switch
The Hager EHN110 is an electromechanical timer designed for mounting on a DIN rail. It offers reliable control of electrical devices indoors and allows for easy programming for daily use. With a rated voltage of 230 V and a frequency of 50 Hz, this timer is suitable for a variety of applications. The EHN110 features one channel and can achieve a maximum switching capacity of 180 W with a rated switching current of 16 A. The shortest switching time is 15 minutes, providing flexible usage. The quartz control ensures high timekeeping accuracy, while the IP20 protection rating guarantees safe operation. This timer is not compatible with smart home systems and does not require a smart home hub, making it a practical solution for traditional applications.
- Mounting type: DIN rail
- Quartz-controlled for high timekeeping accuracy
- Shortest switching time of 15 minutes
- Potential-free switching contact
- Protection rating IP20 for safe indoor use.
5. Hager TYA720 Annual time switch 4-channel KNX
The Hager TYA720 annual timer is a versatile 4-channel timer specifically designed for use in the KNX bus system. It allows for precise control of electrical devices and lighting systems through programmable switching times. The integrated bus coupling and power supply enable the connection of a DCF 77 radio antenna, facilitating the synchronization of date and time. The programming of switching times can be done directly on the device or via a USB key adapter, ensuring user-friendly operation. The TYA720 offers a variety of features, including daily, weekly, and annual programs, as well as a pulse function. Additionally, it allows for manual control and adjustment for movable holidays. With a compact design for DIN rail mounting, this timer is a practical solution for modern smart home applications.
- Integrated DCF 77 radio antenna for precise time measurement
- Versatile programming options via USB key adapter
- Random program and pulse function for flexible applications
- Adjustable annual adjustment for movable holidays
- Manual control and key lock via PIN code.

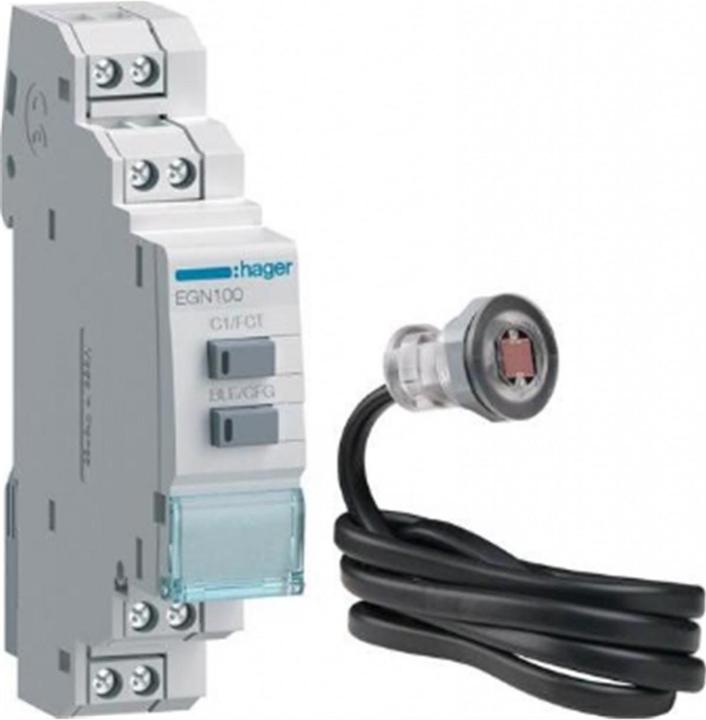

6. Hager Timer 1-channel with built-in sensor Digital
Set consisting of a digital multifunction timer switch 1-channel and brightness built-in sensor. The digital multifunction timer switch 1-channel features an integrated Bluetooth function and app programming. It allows for time, brightness, and location-dependent control with a changeover contact for load on/off or twilight switch function, as well as buttons/switches for exceptions. Usable as a daily, weekly, yearly, and astro clock, additionally with an integrated twilight switch function.
Exception control is carried out via a wired external switch/button or KNX radio switch/button quicklink. Programming is done through the app by activating, deactivating, and resetting Bluetooth on the device: time and date are factory set, automatic summer/winter time changeover, holiday and school vacation times can be selected based on location, access can be restricted via app or key combination, as well as temporary and permanent exception control on/off/pulse.
Programs can be created in the app, can be taken from already used templates, or exceptions can be activated. An optional portal can be used for sharing and external storage of the program. The contact load is reduced by zero-crossing switching. Programming without mains voltage is possible via the integrated power reserve (approximately 10 years).
The built-in sensor has a measuring range of 5 to 2000 lx, a cable length of 1 m, and an operating temperature of -30° to 60°C. The maximum cable length between connectable devices and brightness sensor is 100 m. Note: Communication protocol from version Bluetooth 4.2 and KNX radio RF quicklink.

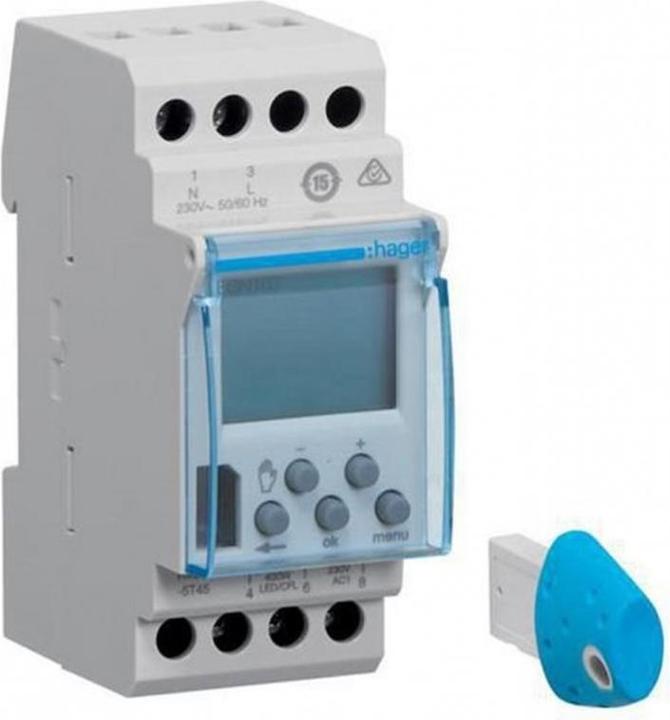

7. Hager EGN103
Hager weekly timer EGN103
Manufacturer: Hager
Description: Weekly timer, 1 switch, 16A, 2PLE
Type: EGN103
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 230 V
Type of supply voltage: AC
Frequency of supply voltage: 50-60 Hz
Backup time in hours: 43800
Backup time in years: 5
Accuracy per day: 1.5 s
Text display: Yes
External programming: Yes
With memory card: No
60 min program: Yes
24 h program: Yes
Weekly program: Yes
Annual program: No
Holiday program: No
Pulse program: No
Cycle program: No
Astro program: No
Random program: No
Operating hour counter: No
Network synchronized: No
Quartz controlled: Yes
Radio controlled: No
Radio controlled (DCF77): No
GPS: No
Contact type: Switch (NO/NC)
Number of contacts: 1
Output signal: Other
Shortest switching time channel 1: 1 min
Shortest switching time channel 2: 1 min
Automatic summer/winter time changeover: Yes
Suitable for manual operation: Yes
External button input: No
Switching preselection: No
Rated switching current at 250 V AC: 16 A
Max. switching power LED: 400 W
Potential-free switching contact: No
Protection class (IP): IP20
Width in division units: 2
Width: 35.8 mm
Height: 85 mm
Depth: 61.6 mm
Hager weekly timer EGN103: Additional details
Digital weekly timer, 1-channel with display for time-dependent control with changeover contact, app programming possible. Programming on the device: time and date (factory set), automatic summer/winter time changeover, temporary and permanent exception control On/Off, lockable keyboard via key combination. Bar graph display for quick recognition of daily programming. Programming without mains voltage possible via integrated backup (approx. 5 years). Note: Bluetooth programming via app when the key is inserted in the timer (key not included). Key communication protocol from version Bluetooth 4.2.
EAN: 3250618502435.
8. Hager EGN100
Digital multifunction timer switch with Bluetooth, 1-channel. This digital multifunction timer switch without a display features an integrated Bluetooth function and app programming for time, brightness, and location-dependent control. It can be used as a daily, weekly, yearly, and astronomical clock, and also offers an integrated twilight switch function. Exceptions can be controlled via a wired external switch, button, or KNX radio switch-button.
Programming is done through the app, which allows for activation, deactivation, and resetting of Bluetooth on the device. The time and date are factory-set, and the automatic summer-winter time change, as well as holiday and school vacation times, can be selected based on location. Access can be restricted via the app or a key combination, and there are options for temporary and permanent exception controls.
Programs can be created in the app, can be based on already used templates, or exceptions can be activated. An optional portal can be used for sharing and external storage of the program. The contact load is reduced by a zero-crossing circuit. Programming without mains power is possible via the integrated backup power of approximately 10 years.
Notes: Communication protocol from version Bluetooth 4.2 and KNX radio RF quicklink. EGN100.

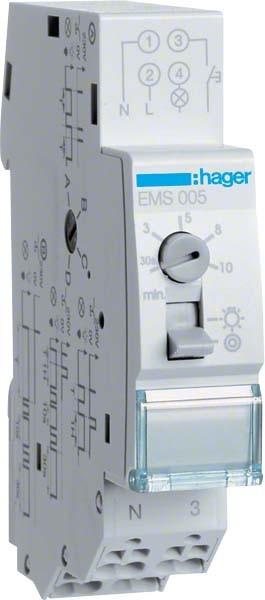

9. Hager Staircase lighting timer
Hager Staircase lighting time switch EMS005 Manufacturer: Hager Designation: Staircase lighting time switch Multifunction Type: EMS005 Function: electronic Mounting type: DIN rail Width in units of pitch: 1 Installation depth: 64 mm Number of contacts as make contacts: 1 Control voltage 1: 230 V Control voltage type 1: AC Frequency of control voltage 1: 50..60 Hz Control voltage 2: 230 V Control voltage type 2: AC Frequency of control voltage 2: 50..60 Hz Rated switching current: 16 A Max. switching current (cos phi : 0.6): 16 A Release delay: 0.5..10 min Pushbutton glow lamp current: 100 mA Switching type: 3- and 4-wire switching Switch-off prewarning: flickering Current surge function selectable: no Post-switching: post-switchable Supply voltage: 230 V Voltage type of supply voltage: AC Max. incandescent lamp load: 2300 W Max. Fluorescent lamp load: 3600 VA Max. fluorescent lamp load (duo circuit): 1000 VA Max. fluorescent lamp load (parallel compensated): 3600 VA Fluorescent lamp load (parallel compensated): 1000 VAHager Staircase lighting timer switch EMS005: more detailsStaircase lighting timer switch multifunction. Electronic staircase lighting timer with low switching noise. The switched on lighting is switched off after the time has elapsed. Functions: Time switch function with setting range 30 sec. to 10 minutes, time switch function with switch-off pre-warning in the last 40 sec., time switch function with one hour long-term operation and switch-off pre-warning. Automatic recognition of the 3- or 4-wire connection, switchable. Manual switch on the device, automatic or continuous lighting. , EAN: 3250612339921

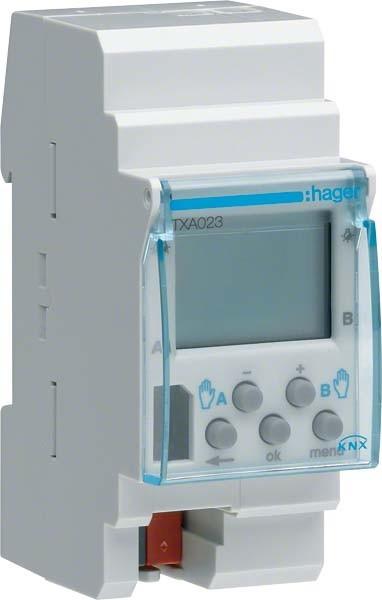

10. Hager TXA023
The Hager TXA023 is a digital timer designed for precise control of electrical devices in a smart home. With its weekly timer function, it allows for flexible programming over a period of up to one week. The timer is splash-proof and offers a high protection rating (IP20), making it suitable for use in various environments. It is easy to install and can be mounted on a DIN rail. The TXA023 supports a variety of functions, including app control and countdown options, and is compatible with the KNX system, enabling seamless integration into existing smart home solutions. The power failure protection ensures that programmed settings are retained even during a power outage.
- Weekly timer with up to 56 programs
- Splash-proof with IP20 protection rating
- Compatible with KNX smart home systems
- App control and countdown function
- Easy installation on DIN rail.
