Hello Chillikopf17 That's not quite right ... Here https://www.thermaltake.com/pub/media/productattach/db/support/usermanual/5V_RGB_Motherboard_Support_List.pdf you will find the support list, which also includes many ASROCK.

Good day Kuschi I have a Gigabyte board B550 Aorus Elite and the Thermaltake controller as a combination. The connection cable from Thermaltake to the board was a three PIN connector. There are 2, 5 volt addressable connectors on the board. However, the PIN socket is equipped with four PINs. However, only three of these PINs are actually connected to the board. I crimped myself a connector that had four pins and crimped the three cables from Thermaltake to the correct PINS. Unfortunately I can't upload photos to show it clearly. (https://download.gigabyte.com/FileList/Manual/mb_manual_b550-aorus-elite-ax-v2_e.pdf?v=24d24cf9acc76ba2c833adbcf9dfc9c7) In the link is the manual of the B550 board, there you can see exactly what I mean. Can you tell me which Z690 board you have exactly? Then maybe I can help you further.

Question 1: Yes Asus Aura works I have asus myself and the controller Question 2: Should work, with AMD chipset there are problems with the USB ports, that not every port recognises the controller. Question 3: All 3 ports on one side are controlled with the same PWM. Cheers

Hello, the software does not recognise the controller for me either. I gave up. Unfortunately, I can't help you any further.

There are 3 separate outputs to which 3 fans each can be connected. The 3 fans per group are always controlled in the same way. However, if you only have 3 fans, you can connect them to 3 different outputs and thus assign different colours. The colour control is done with the mainboard software. I have a Gigabyte board and therefore have to use "RGB-Fusion". Unfortunately, this software is lousy.

It's exactly the same with me. Unfortunately, this is because the controller only takes over the setting from the software. and as long as your PC is booting, it is not fed with information by the software.

No, the TT-Sync controller is not designed as a fan hub, but to synchronise the RGB Plus, Trio and Quad products with the motherboard's RGB software. The Sync Controller is not designed to work with the TT RGB Plus software, as it does not have the USB connection to the motherboard. You have no alternative but to use the original controller, which is supplied with the fans. Please note the restrictions and the compatibility list of the controller, which can be found on the manufacturer's website: https://de.thermaltake.com/tt-sync-controller-tt-premium-edition.html

This is a difficult question to answer, it would be wiser to ask the Thermaltake forum directly or contact Thermaltake customer care.

Actually, it is indecent to answer a question with a question... But... I don't really understand your question - Do you mean if you can also control the controller with the Riing Plus RGB software?

Hello Luki Yes, with this Sync Controller you can connect all your TT Fans/Pumps/LEDS together in one place and connect to a RGB header on your mainboard :) Then you don't need any extra software for the lighting, but can control everything directly in ASUS Aura Sync or similar. Greetings

This cable is for the signal connection to the motherboard. There you must connect it to a DRGB port. That is, to a digital 5 volt RGB port. Depending on which motherboard you have, you may have to use cable D instead of cable C.

Samsacha, with the controller you have everything you need. In addition to the connector (power) to Sata, it also has a cable connection. Since you have an Asus mainboard, I think you have to use the cable with "C2. You have to connect this cable from the controller to the Aura LED strips slot on the mainboard. Then connect all the fans and also connect the PWM cables from the controller to 1-3 PWM fan connections on the mainboard. The fan speed is then set via BIOS. The RGB via Aura

Hello I have 10 fans and I had to connect 1 directly to the motherboard If more than 12 I will take 2 Good luck Frédéric

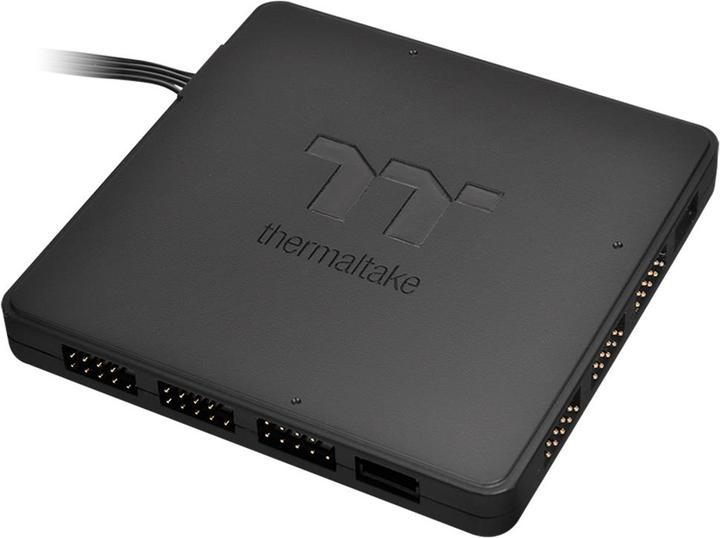

Hello Patrikstrollface Yes it is, see description: Thermaltake's TT Premium Edition TT Sync Controller is a 9-port LED controller designed to sync Thermaltake LED products with ASUS, GIGABYTE and MSI motherboards. Once you have connected the products to the controller and downloaded ASUS Aura Sync, GIGABYTE RGB Fusion or MSI Mystic Light Sync to your PC, you can control the lighting directly from the software without installing the Riing Plus RGB software and additional lighting controllers.

1. no only Tt fan 2. the software of your motherboard. E.g. asus aura or similar. 3. yes. depending on the software. But I think less.
