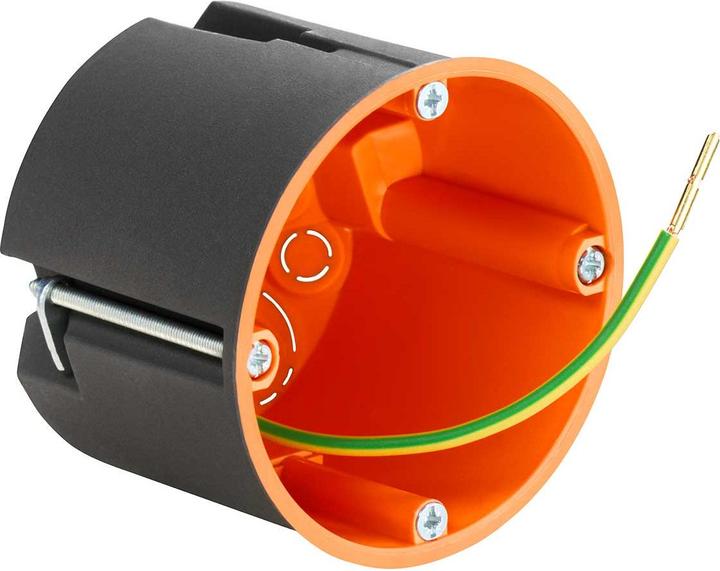

Kaiser Hollow Wall Box 9064-88

Manufacturer: Kaiser
Description: Hollow wall box
Type: 9064-88
Installation type: Hollow wall
Shape: round
Design: Device connection box
Version: Single
With rotating ring: no
Coupleable: yes
Filling: none
Diameter: 68 mm
Depth: 68 mm
For number of device inserts: 1
Device fastening: screws
With screws: yes
Housing passage through break-out opening: no
Housing passage through sealing membrane: no
Housing passage through pipe socket: no
Housing passage through stepped membrane: no
Pipe locking: no
Pipe locking optional: no
Rear entry: yes
Material: Plastic
Halogen-free: no
Color: orange
Protection class (IP): IP3X
Cover version: none
Transparent cover: no
Seal-able: no
Function maintenance: none
With shielding: yes
Air-tight: no
Light hook fastening: no
Socket: Tunnel socket
Special application: other
With partition wall: no

Kaiser Hollow Wall Box 9064-88: additional details
Shielded device box / device connection box (9064-88). Shielded device connection box for hollow wall installation. The conductive coating serves as interference protection, reducing emissions and ingress from interference sources with predominantly electrical alternating fields. Application area: For built-in devices | Depth: 68 mm | Installation type: Shielded - biological construction | Milling hole Ø: 68 mm.
