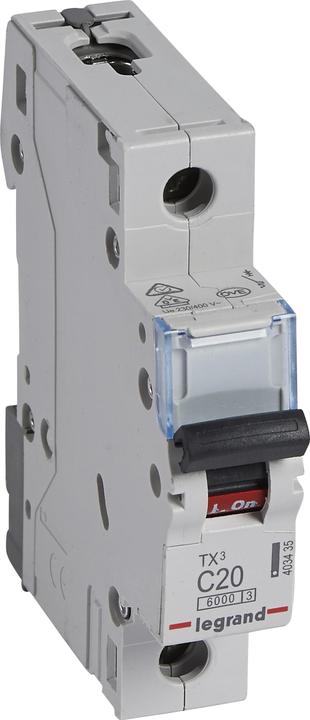

Legrand Circuit breaker Tx3 403435 Ls C20A 1P 6Ka 1M 403435
Price in EUR including VAT
Free shipping starting at 30,–
The TX3 circuit breaker with C-characteristic from Legrand is a reliable and safe device designed according to the standards EN 60898-1, VDE 0641-11, and EN 60947-2. It is single-pole and offers a rated current of 20 A as well as a rated breaking capacity of 6 kA. The switch is suitable for use in alternating current systems with a rated voltage of 230/400 VAC and a frequency of 50/60 Hz. The energy limiting class 3 provides additional protection. Installation is straightforward on a DIN rail, and the switch features a clear switching position indicator as well as a labeling window. The TX3 is specifically designed for applications with high inrush currents, such as motors and transformers, thus providing effective circuit protection.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 90 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 22654286 |
Manufacturer | Legrand |
Category | Residual-current device |
Manufacturer no. | 403435 |
Release date | 13.10.2022 |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 20 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 90 mm |
Height | 190 mm |
Length | 8.50 cm |
Width | 8.50 cm |
Height | 1.50 cm |
Weight | 120 g |
