Legrand Circuit breaker Tx3 403436 Ls C25A 1P 6Ka 1M 403436
Price in EUR including VAT
Free shipping starting at 30,–

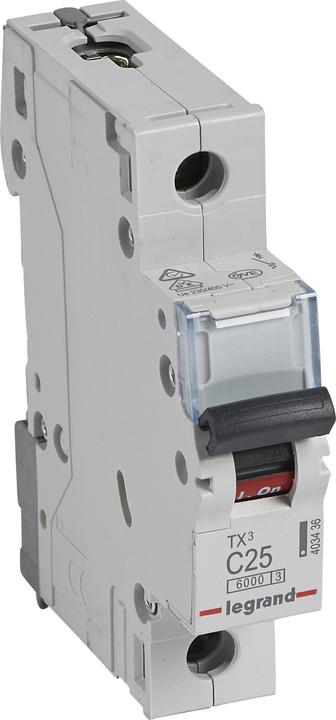

The Legrand circuit breaker TX3 403436 is a high-quality protective switch designed according to the standards EN 60898-1 and VDE 0641-11. It provides reliable protection for electrical circuits and devices, particularly in applications with high inrush currents, such as motors and transformers. With a C characteristic and a rated current of 25 A, this single-pole switch is suitable for use in AC systems with a rated voltage of 230/400 VAC. The switch is designed for mounting on a DIN rail and allows for easy installation through a snap-on quick fastening mechanism. The clear switching position indicator and labeling window ensure user-friendly handling. Additionally, the switch is equipped with a plug protection feature that guarantees safe insertion of the conductor into the terminal block. The TX3 403436 is therefore an ideal choice for circuit protection in various electrical applications.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 90 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 22654287 |
Manufacturer | Legrand |
Category | Residual-current device |
Manufacturer no. | 403436 |
Release date | 13.10.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Claw fastening |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 25 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 90 mm |
Height | 190 mm |
