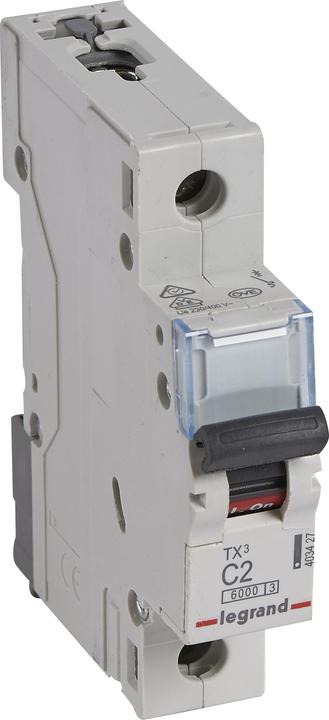

Legrand Circuit breaker Tx3 Ls C2A 1P 6Ka1M 403427
Price in EUR including VAT
Free shipping starting at 30,–
The TX3 circuit breaker with C-characteristic from Legrand is a reliable protection device specifically designed for use in electrical installations. With a rated current of 2 A and a nominal voltage of 230/400 VAC, this single-pole circuit breaker provides effective protection against overload and short circuits. It meets the requirements of standards EN 60898-1 and VDE 0641-11 and is suitable for applications where high inrush currents occur, such as with motors and transformers. The breaker is equipped with an energy limitation class 3 and features a clear switching position indicator as well as a labeling window for easy identification. Installation is straightforward on a DIN rail, facilitating integration into various electrical systems.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 90 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 14172891 |
Manufacturer | Legrand |
Category | Residual-current device |
Manufacturer no. | 403427 |
Release date | 11.11.2020 |
External links |
Colour | Green, Red |
Exact colour description | Green, Red |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 0.01 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 6000 A |
Protection type (IP code) | IP20 |
Country of origin | France, Poland |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 90 mm |
Height | 190 mm |
